3 Series E46 M3 (S54) COUPE

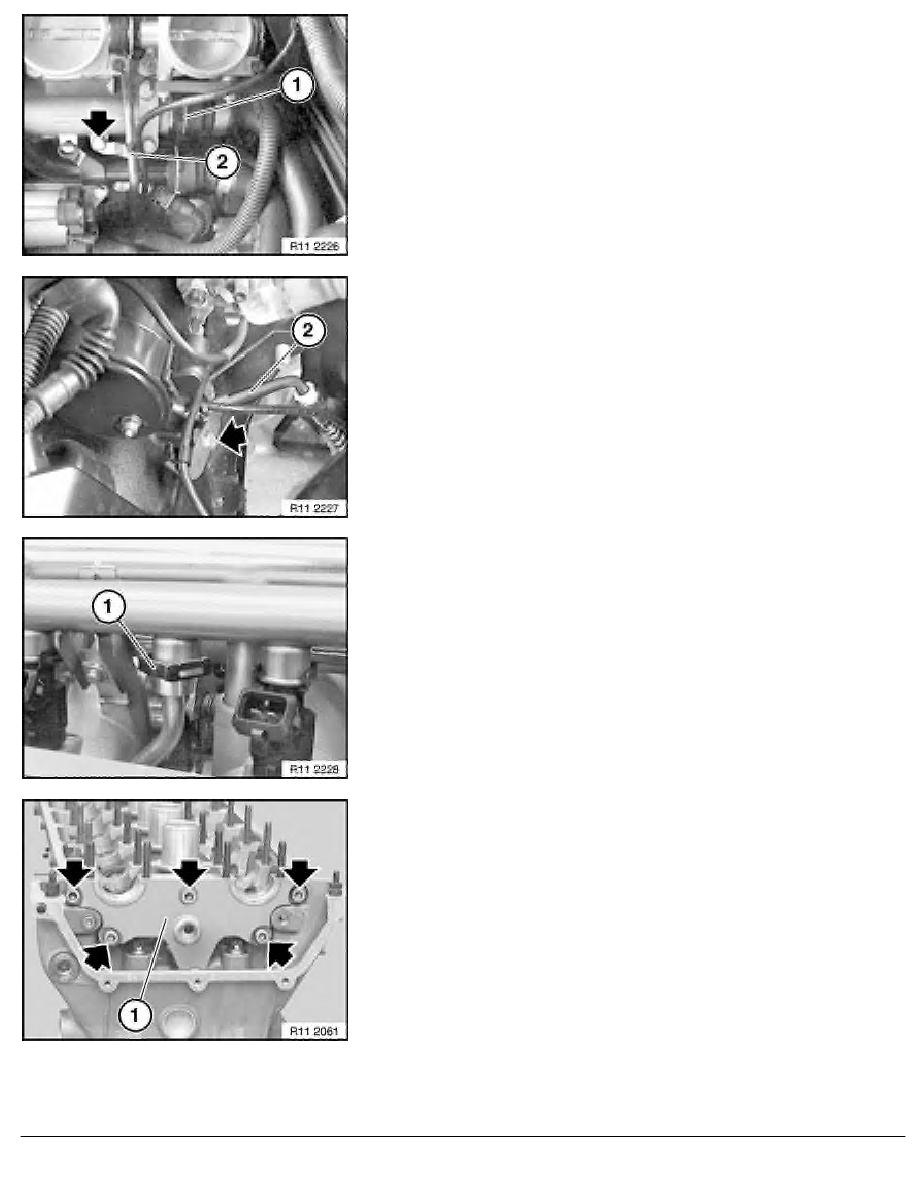

Unlock water hose (1) and detach from return line.
Release upper screw of fuel feed line (2) from return line.
Release lower screw of fuel feed line (2) from engine block.
Detach retaining clip (1) of fuel feed line.
Note:
Catch and dispose of escaping fuel.
Pull fuel feed line downwards.
Note:
The thrust bearing flange (1) and the cylinder head are machined
as a single unit and must not be replaced individually.
Remove thrust bearing flange (1).
RA Removing and installing/sealing cylinder head (S54)
