3 Series E46 M3 (S54) COUPE

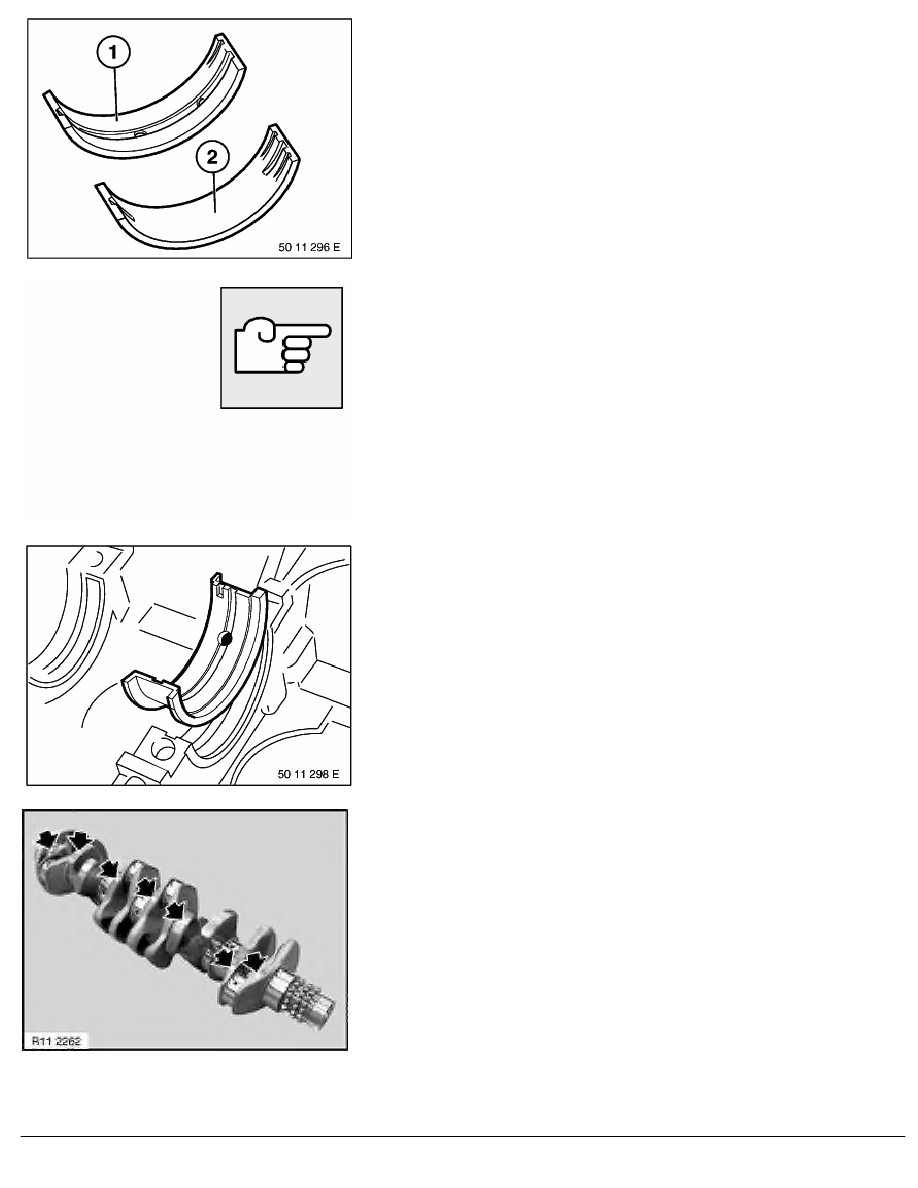

Note:
1)
Install bearing shells with continuous lubricant groove and
one retaining lug in engine block.
2)
Fit bearing shells without continuous lubricant groove and two
retaining lugs in bearing cover.
Installation:
When the bearing shells or the crankshaft are replaced, the
classification for bearing shell arrangement in the engine
block is eliminated.
Only install yellow bearing shells in the engine block.
Note:
The axial guide on the crankshaft is fitted to bearing point 6.
Insert pilot bearing shell in the engine block.
Note:
The crankshaft is marked with yellow, green or white paint
according to the tolerance of the main journal.
Insert crankshaft in engine block.
RA Replacing all crankshaft main bearing shells (S54)
