Important!
There is a danger of mixing up battery leads:

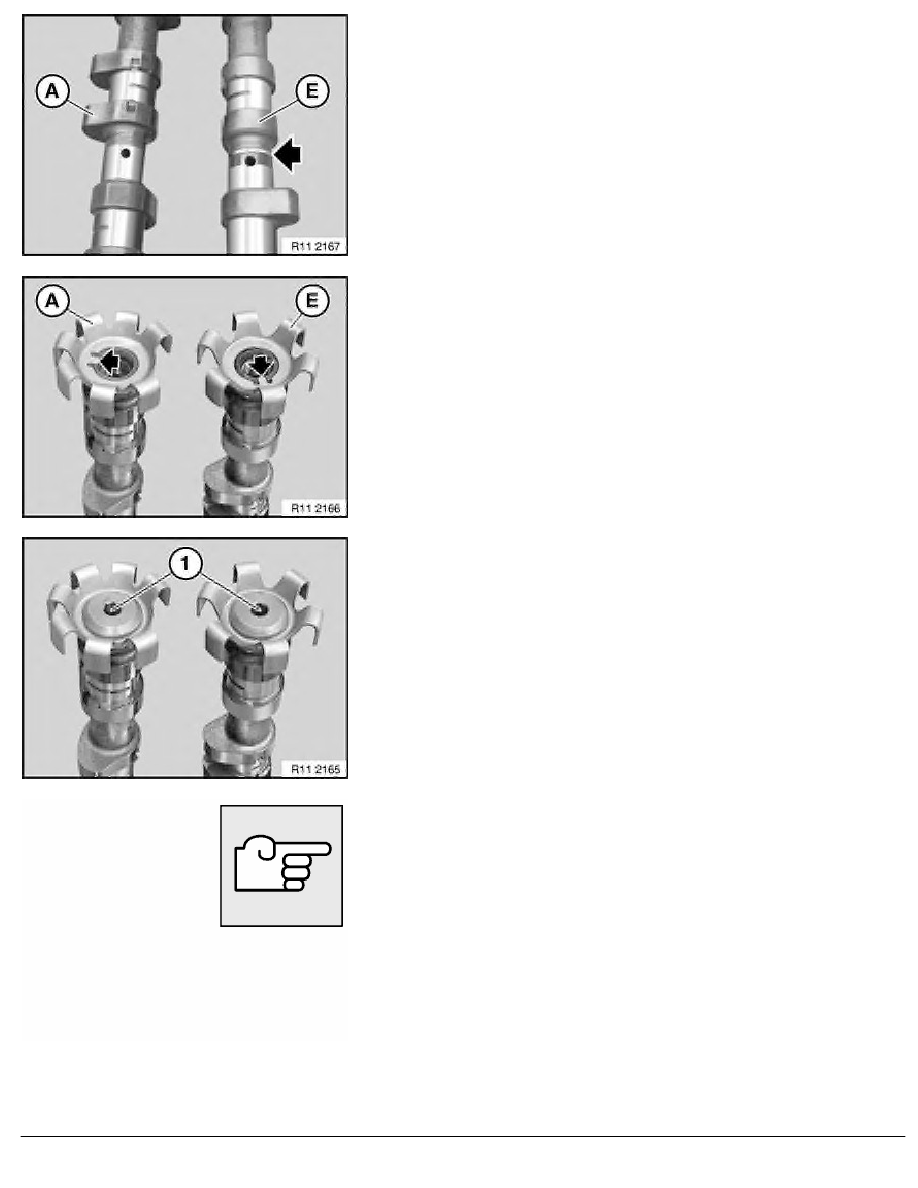

The inlet camshaft has an identifying groove behind the locating
bore.
(A) Exhaust camshaft without groove
(E) Inlet camshaft with groove
Note:
Signal rings of inlet and exhaust camshafts are different.
(A) Signal disk of exhaust camshaft with seven blades.
(E) Signal disk of inlet camshaft with six blades.
Fit signal disks, align locating lug to groove.
Install banjo bolt (1) and tighten down.
Tightening torque 11 31 13AZ
.
Note:
Clean dirty parts.
Oil following parts before installation:
•
Contact faces of camshafts in cylinder head
•
Rocker arm
•
Cams and contact faces of camshafts
•
Bearing cover
RA Replacing camshafts (S54)
