3 Series E46 M3 (S54) COUPE
•

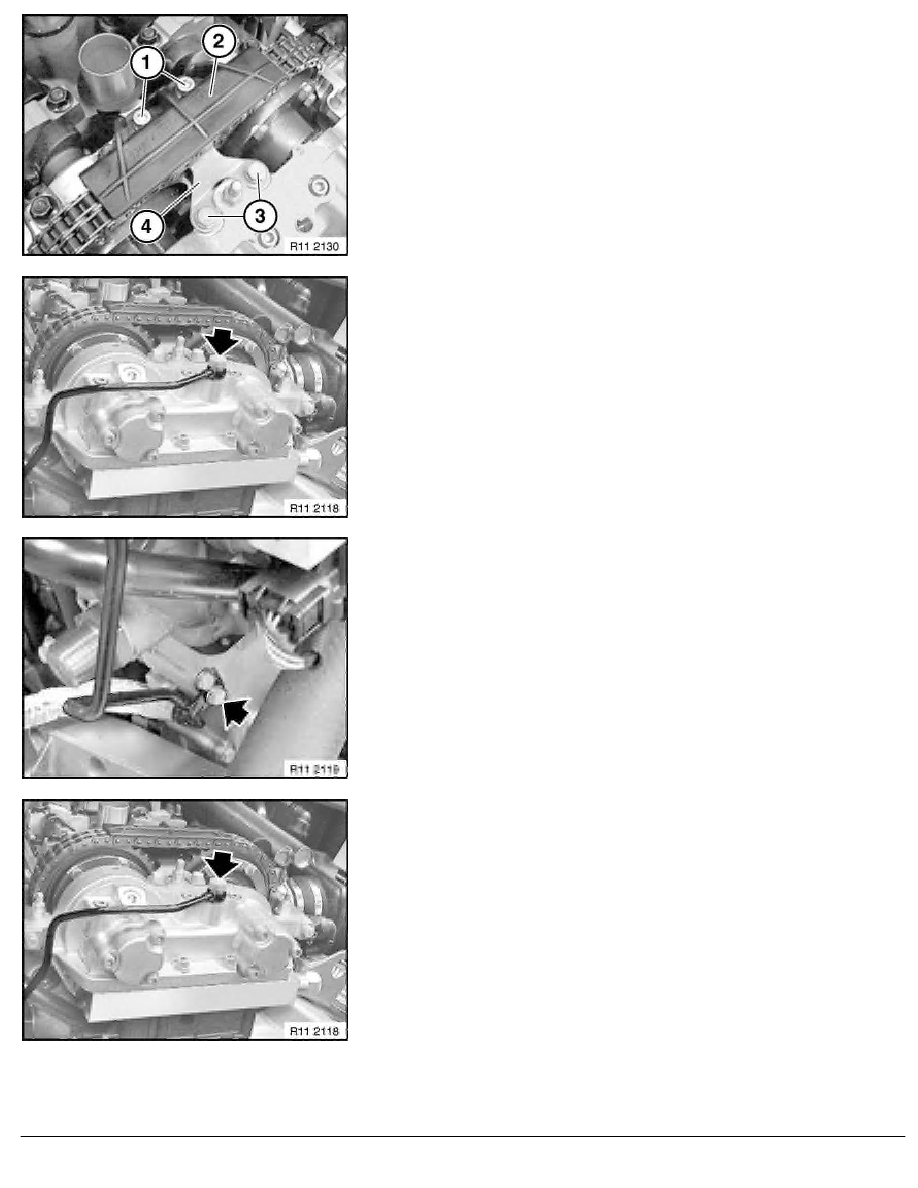

Insert screws (3) and secure holder (4) (do not tighten
down screws (3) yet)
•
Install sliding rail (2).
•
Insert screws (1).
•
Tighten down screws (1) and screws (3).
Replace sealing rings of banjo bolt.
Insert banjo bolt but do not tighten down yet.
Install bracket of oil line. Install screw and tighten down.
Tighten down banjo bolt of oil line.
Tightening torque 11 36 9AZ .
RA Replacing camshafts (S54)
