3 Series E46 M3 (S54) COUPE
S50 B32 and S54
Valve stem diameter 6 mm:

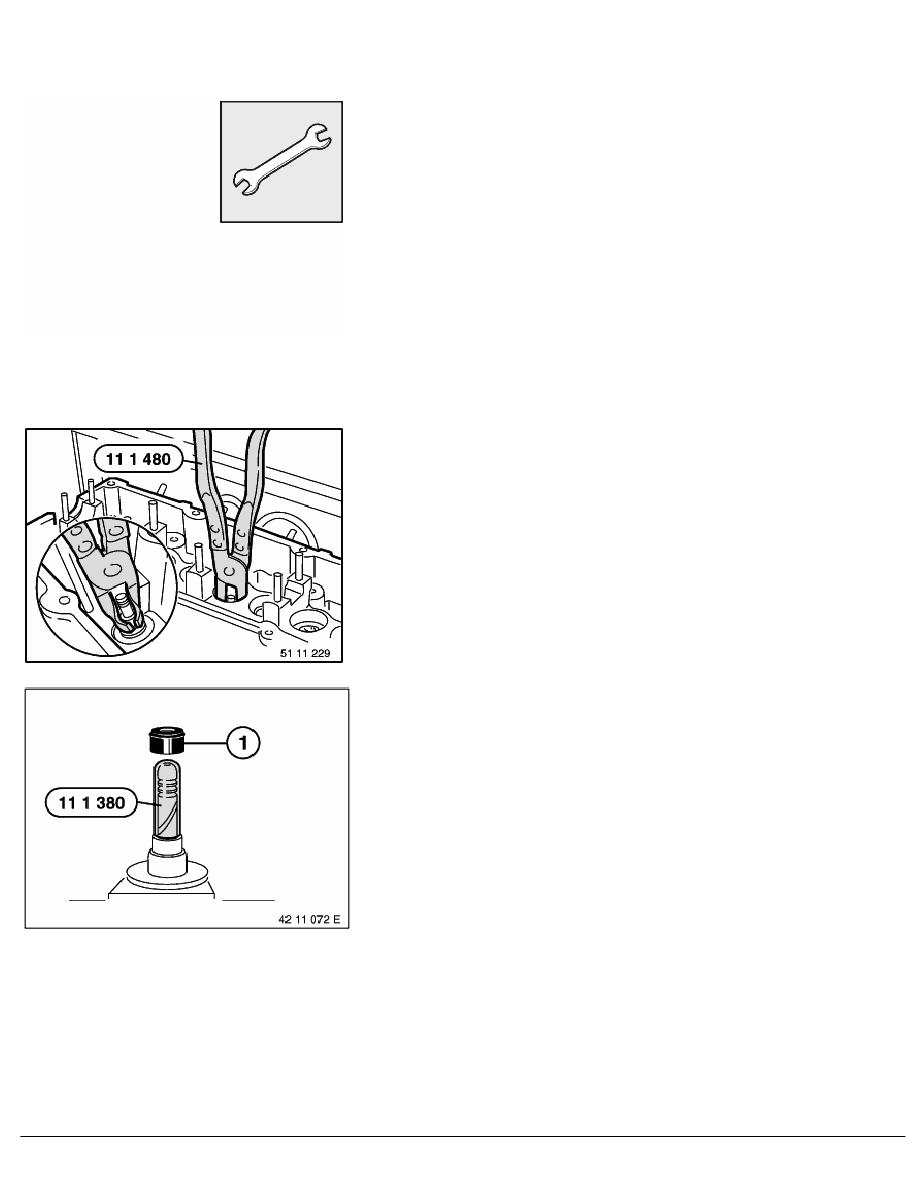

Installation:
Lubricate valve stem with oil and insert valve.
Fit special tool 11 1 960 .
Coat new valve stem seal (1) with oil and install.
Note:
Special tool 11 1 200 is used for valve stem diameters 6 mm
and 7 mm.
Installation:
Press valve stem seal firmly home by hand with special tool
11 1 200 .
RA Replacing all valve stem seals - cylinder head removed (S50 / S54)
BMW AG - TIS
16.02.2013 12:59
Issue status (12/2007) Valid only until next DVD is issued
Copyright
Page - 2 -
