3 Series E46 M3 (S54) COUPE
11 78 510
Replacing both oxygen control sensors (S54)
Special tools required:
•
11 7 030
•
11 9 150
(for work step number 13 00 002)
Read out fault memory, clear if necessary.
E46 only:

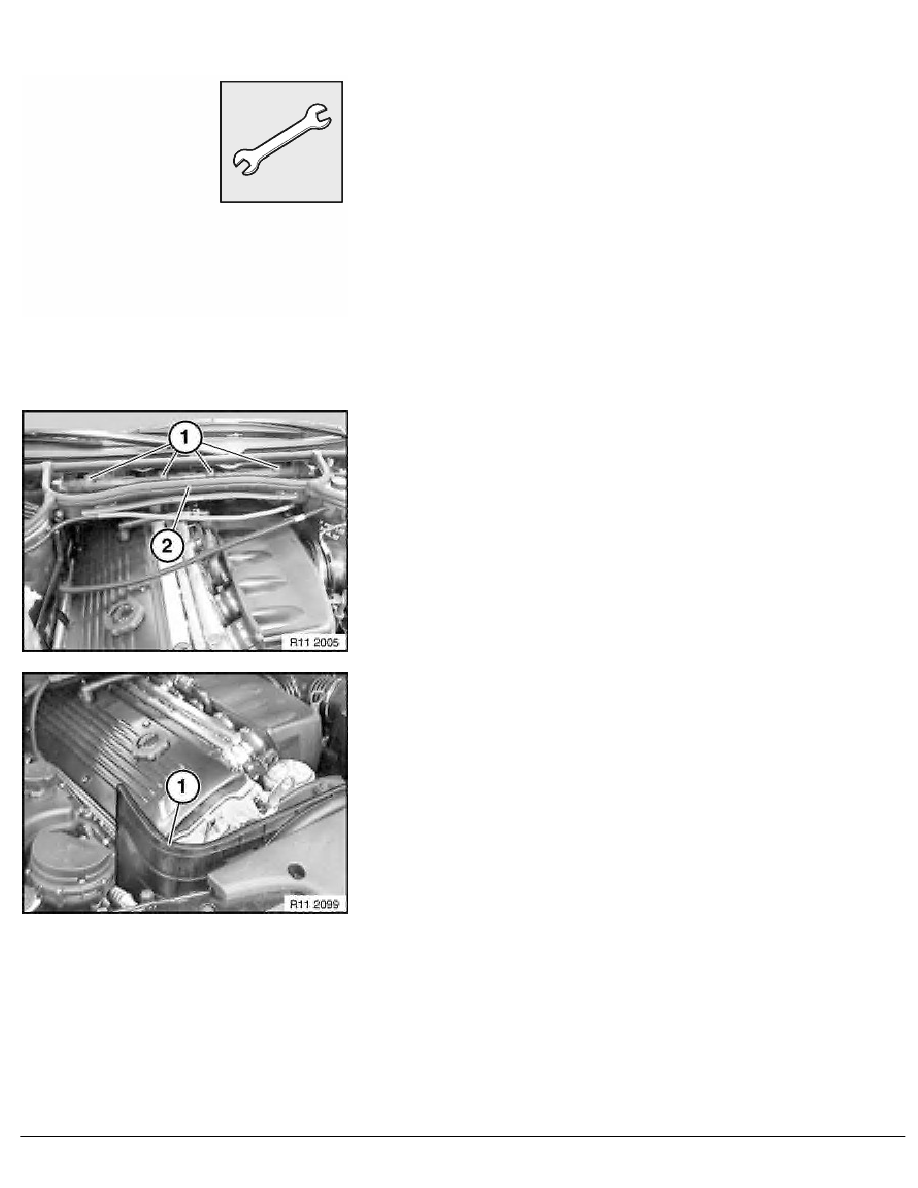

Remove microfilter.
Open cable duct on lower section of microfilter housing (2) and
feed out cable.
Release screws (1) and remove lower section of microfilter
housing (2).
E46 only:
Lever out expansion rivets. Remove air duct (1).
RA Replacing both oxygen control sensors (S54)
BMW AG - TIS
16.02.2013 13:10
Issue status (12/2007) Valid only until next DVD is issued
Copyright
Page - 1 -
