3 Series E46 M3 (S54) COUPE
13 63 554
Replacing throttle valve potentiometer (on
throttle valve actuator S54)
Necessary preliminary tasks:
•
Remove intake air manifold

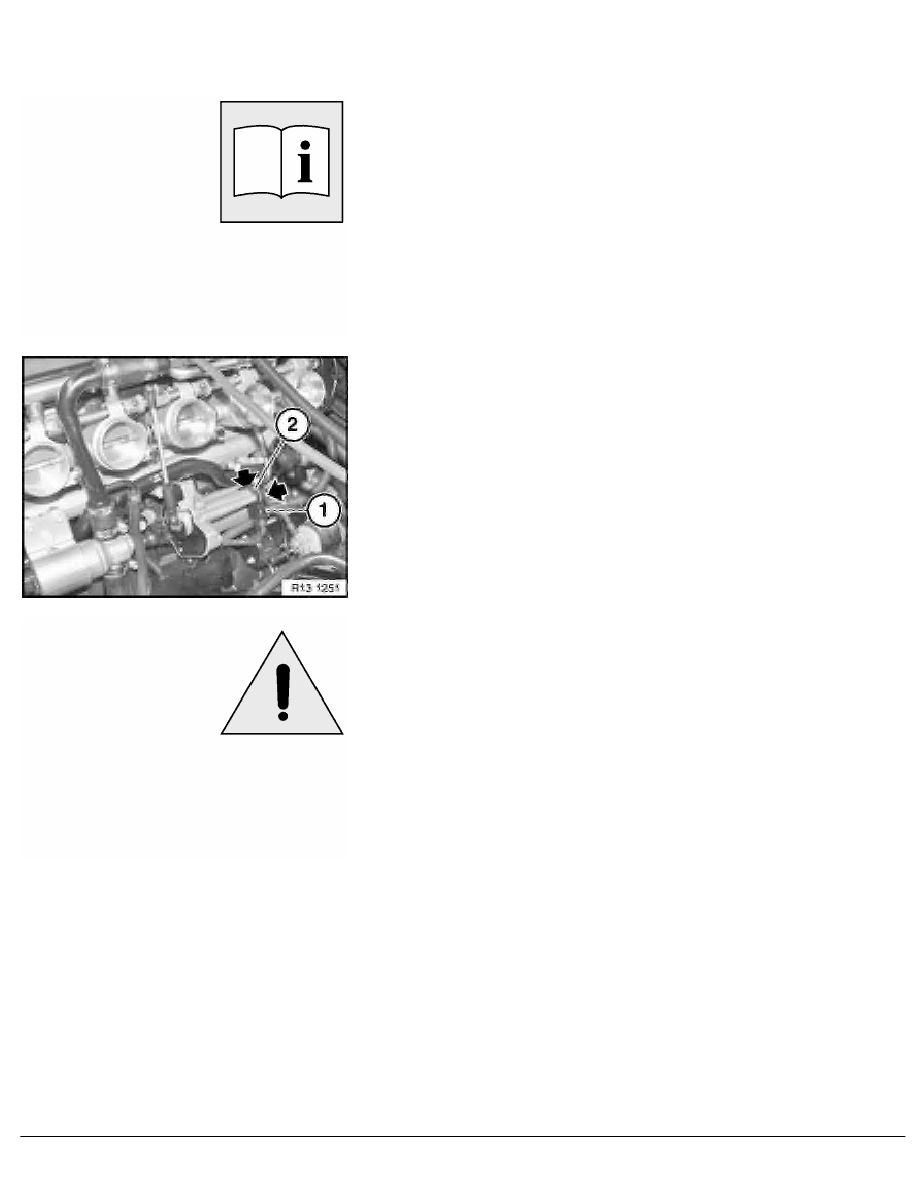

Disconnect plug connection (1).
Release both screws and remove throttle valve potentiometer (2).
Important!
After working on throttle system (throttle assembly,
servomotor, potentiometer), carry out electronic throttle test
with DIS Tester or MoDiC without fail:
-
Service functions
-
DME system checks
-
Function test
RA Replacing throttle valve potentiometer (on throttle valve actuator S54)
