3 Series E46 M3 (S54) COUPE
Removal:
Removal of a throttle valve assembly is described separately from
its installation.

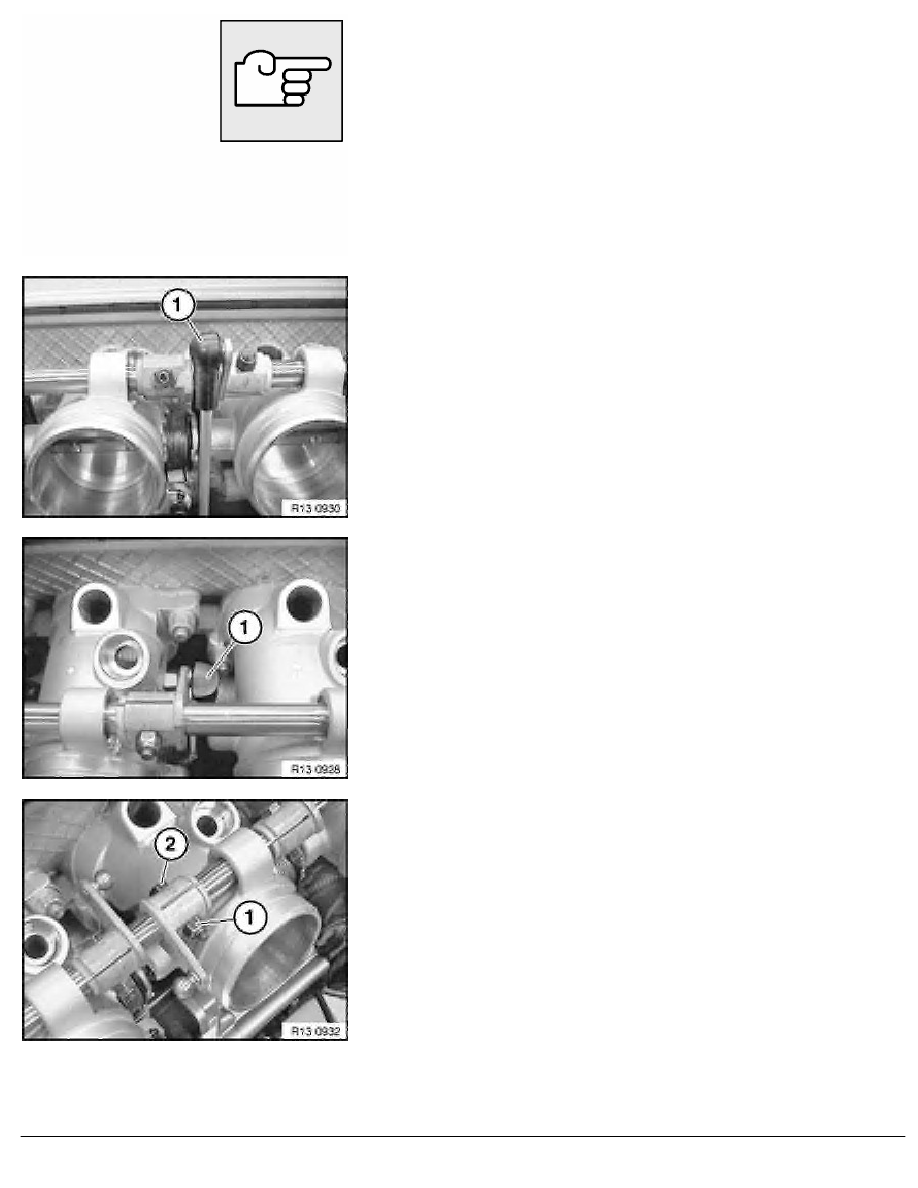

Unclip pull rod (1) for throttle valve actuator on throttle valve side
(long pull rod).
Unclip pull rods (1) on all throttle valve assemblies.
Release screw connection of actuating lever on long pull rod.
Always grip screw (2) and turn nut (1) in so doing.
RA Removing and installing/sealing a throttle valve assembly (S54)
