Removing and installing/replacing tank
leakage diagnosis module (M3 with DM-TL)

DM-TL = diagnosis module, tank leakage

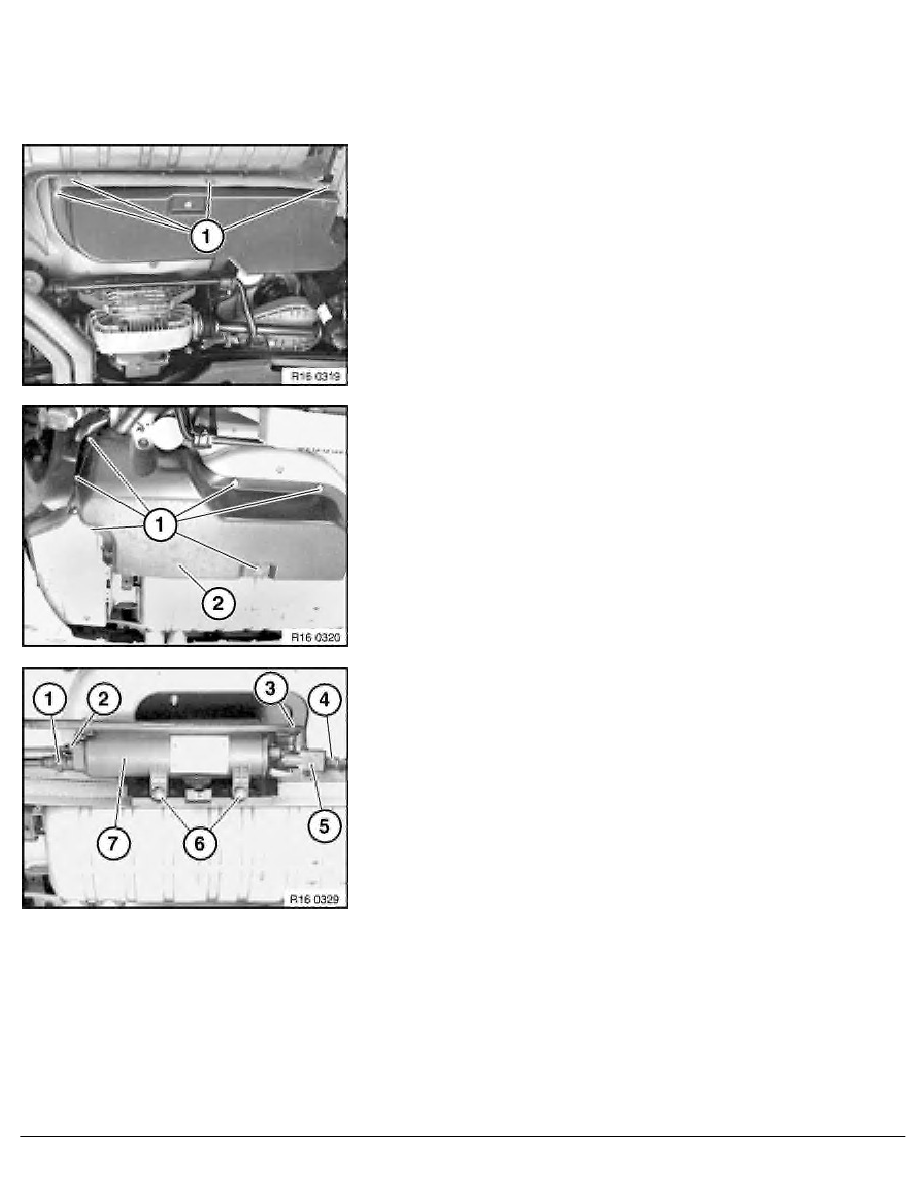

Release screws (1) from rear.

Release screws (1) from front. Remove panel (2).

Unlock plug (4) and detach.

Release screws (6) and lower carbon canister (7) with DM-TL (5).
