3 Series E46 M3 (S54) COUPE
17 11 031
Replacing fan cowl (S54)

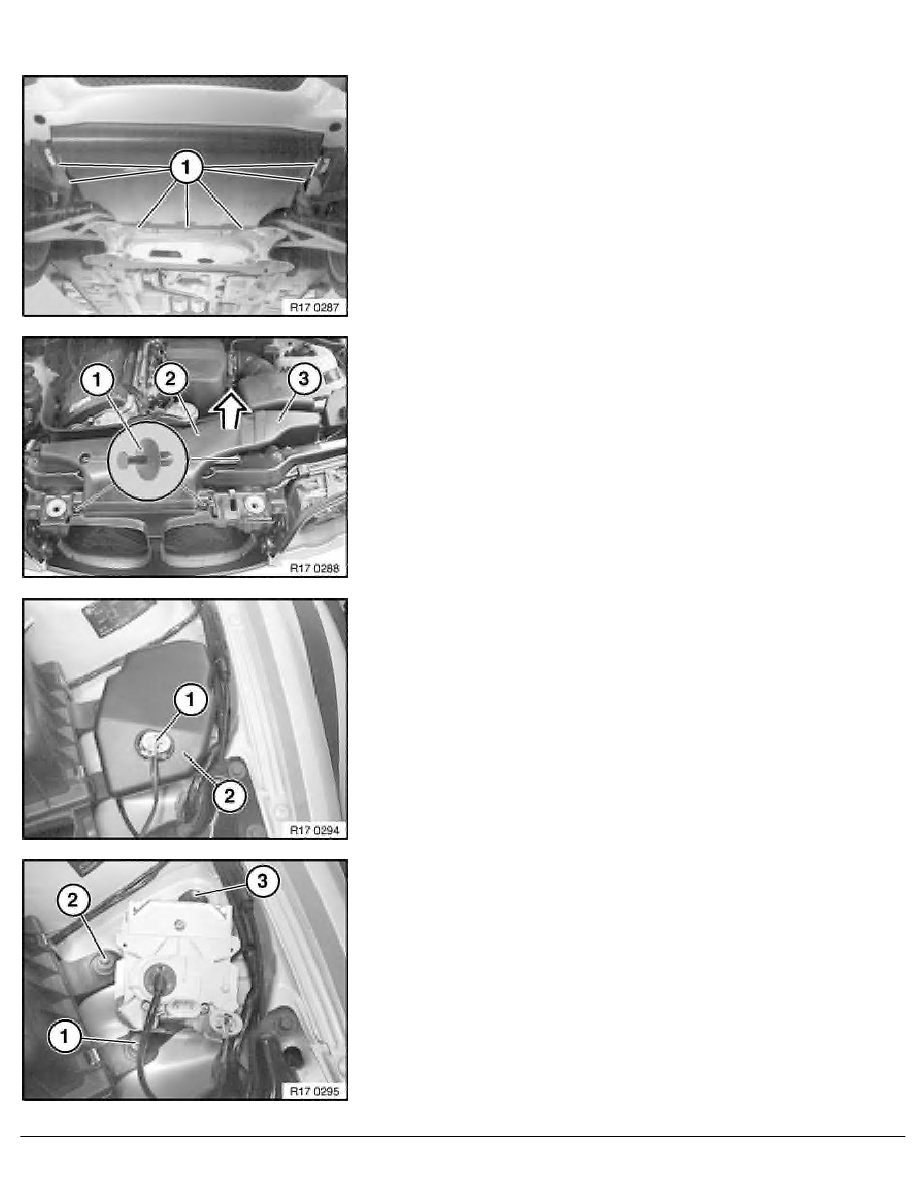

Release screws (1).
Remove underbody protection.
Release expansion rivets (1).
Remove intake hood (2) and intake pipe (3) in direction of arrow.
Detach plug (1) from control unit for xenon light.
Remove cover (2).
Release screws (1, 2, 3).
Remove control unit for left xenon light.
Remove intake filter housing.
RA Replacing fan cowl (S54)
