3 Series E46 M3 (S54) COUPE

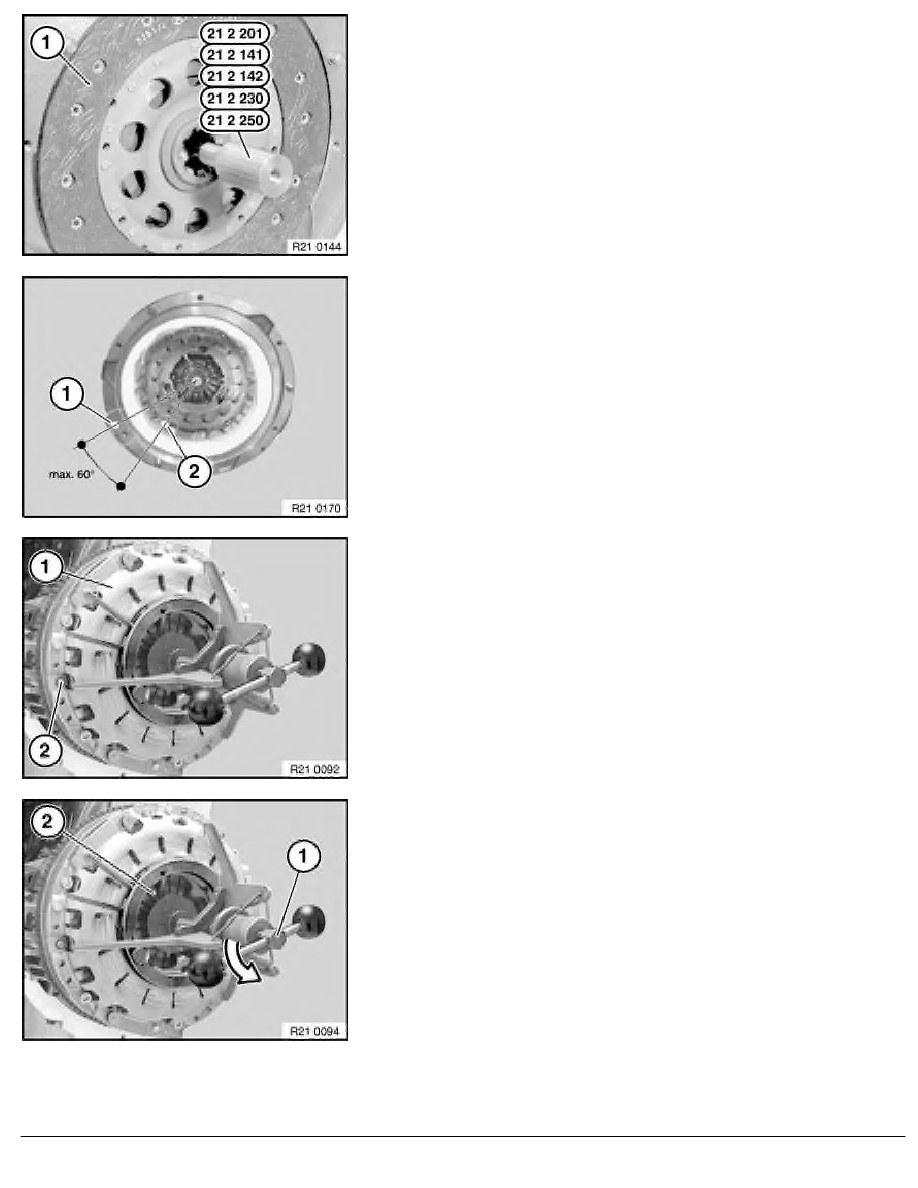

Center clutch plate (1) with special tool 21 2 141 .
Important!
Pay attention to color marking when fitting SAC clutch with
balance marking.
Position color marking (1) on dual-mass flywheel and color
marking (2) on clutch pressure plate as closely as possible to
each other.
Max. possible angle error: 60
°
.
Note:
Fitting with balance marking from 04.2003.
Fit SAC clutch (1) on flywheel.
Pay attention to dowel pins (2).
SAC clutch (1) must be secured by way of dowel pins (2).
Insert screws and tighten down.
Tightening torque: 21 21 1AZ
.
Release spindle (1) until tension is completely removed from
diaphragm spring (2).
RA Removing and installing or replacing clutch
