3 Series E46 M3 (S54) COUPE

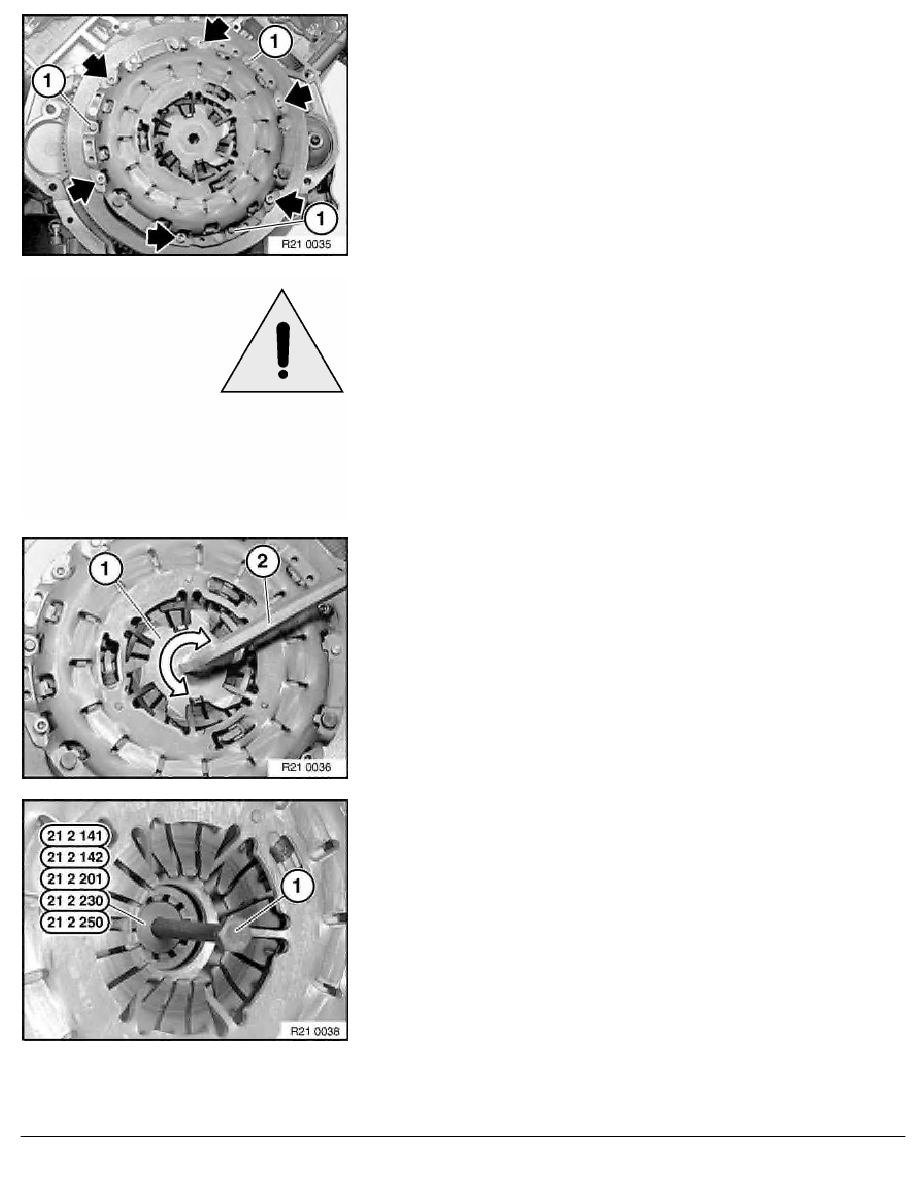

Push SAC clutch onto dowel pins (1) located in flywheel and
screw down.
Tightening torque: 21 21 1AZ
.
Important!
Locking piece (1) may only be removed when SAC clutch is
screwed down!
Carefully unscrew locking piece (1) clockwise or
counterclockwise with a hexagon socket wrench 14 A/F (2).
Note:
A slight snapping of the plate spring while unscrewing is
possible.
Withdraw special tool 21 2 141 from clutch plate with aid of
accompanying screw (1).
RA Removing and installing or replacing clutch
BMW AG - TIS
16.02.2013 15:00
Issue status (12/2007) Valid only until next DVD is issued
Copyright
Page - 12 -
