3 Series E46 M3 (S54) COUPE
23 11 612
Replacing guide tube for clutch release
mechanism (S6S 420G)
(transmission removed)
Remove clutch release bearing and release lever from guide tube,
refer to 21 51 500.

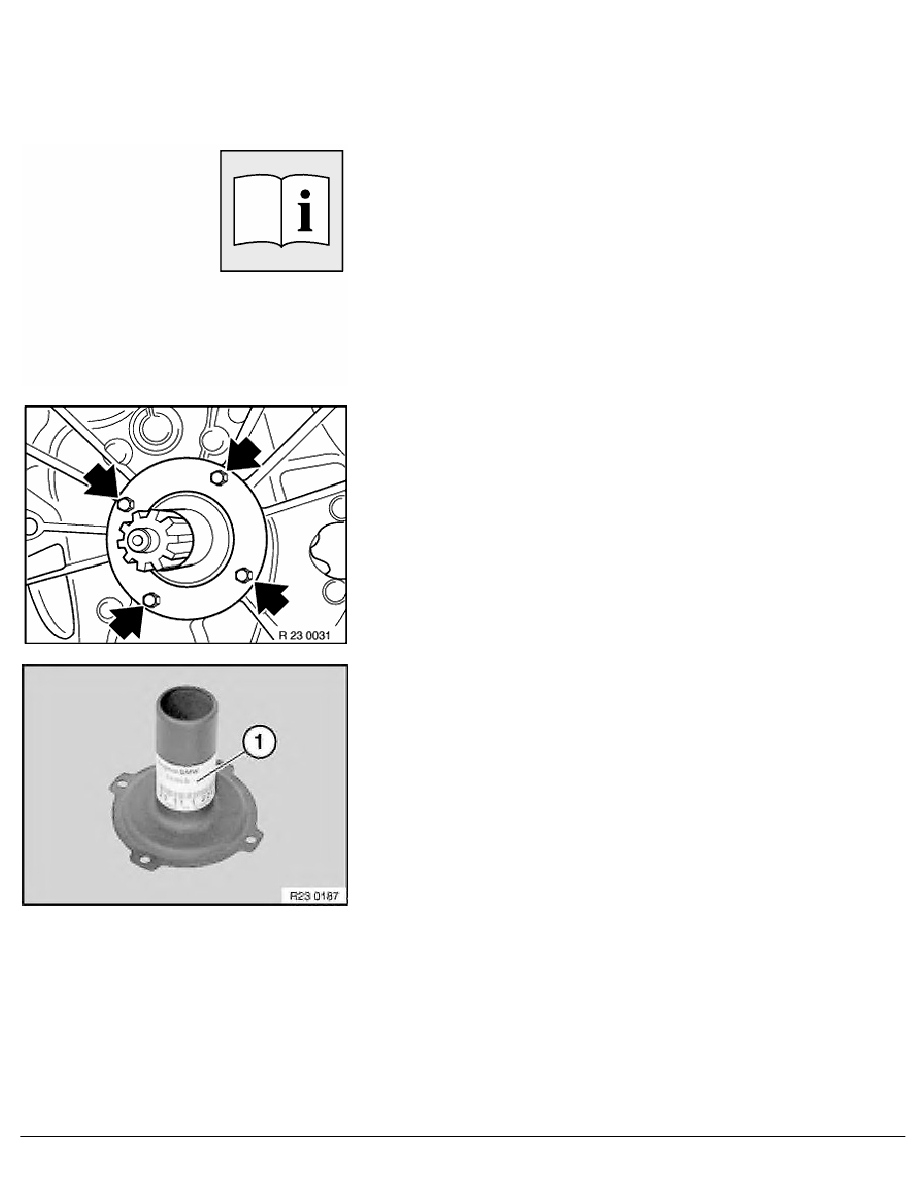

Unfasten screws.
Remove guide tube (1).
Installation:
Clean thread.
Install screws with Loctite 243.
Tightening Torque,
refer to Technical Data 23 11 2AZ.
Note:
Remove sticker (1) and adhesive with a suitable solvent.
RA Replacing guide tube for clutch release mechanism (S6S 420G)
