3 Series E46 M3 (S54) COUPE

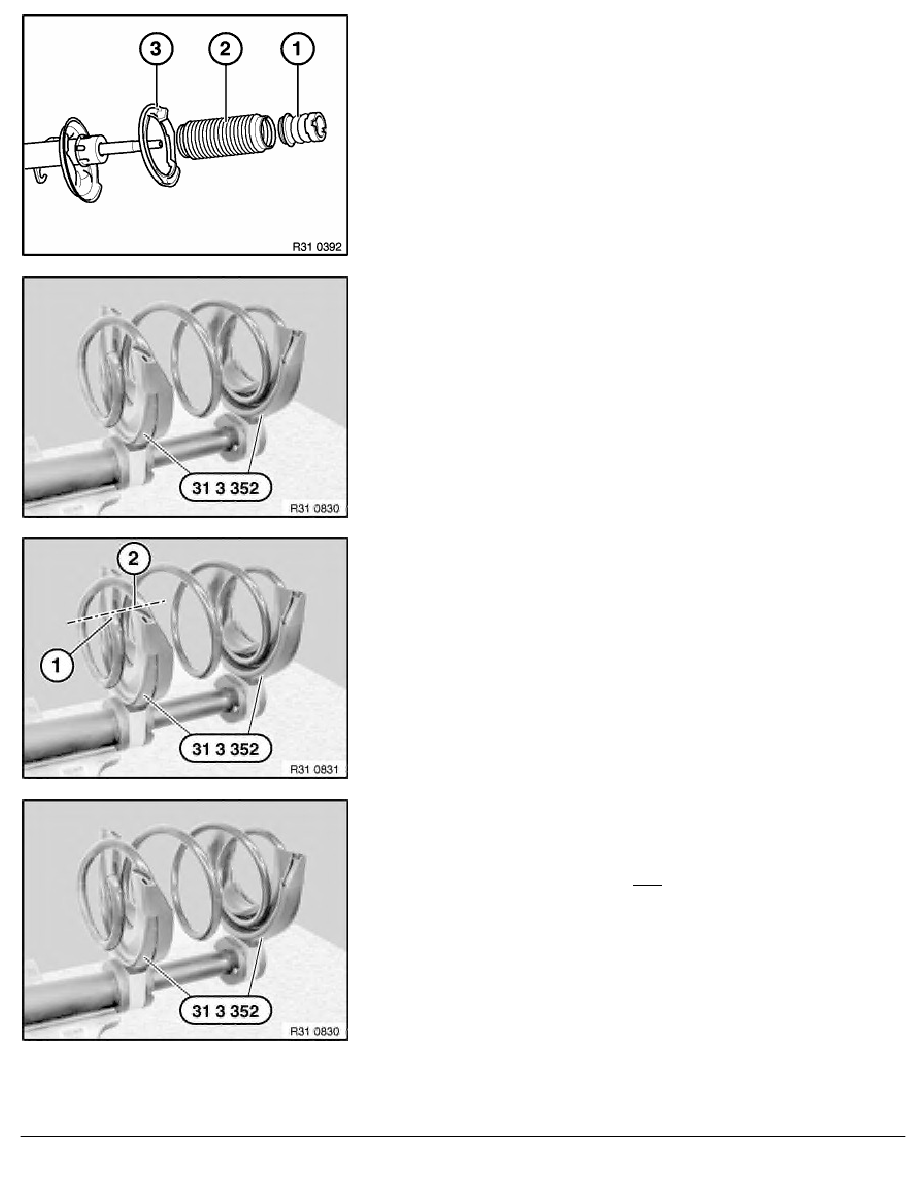

If necessary, remove auxiliary damper (1) with gaiter (2) and
spring pad (3) from shock absorber.
Relieve tension on coil spring and remove from special tools
31 3 352 .
Assembly:
Accommodate coil spring with special tools 31 3 352 .
Twist coil spring until lower end of coil spring (1) is flush with
end (2) of special tool 31 3 352 or protective insert.
Warning!
Do not compress coil spring to full extent.
Coils of coil spring must be located completely in recesses of
special tools 31 3 352 with protective insert!
Tension coil spring.
RA Replacing front left or right spring strut (M3)
