3 Series E46 M3 (S54) COUPE

Page 1
background image

33 21 ...

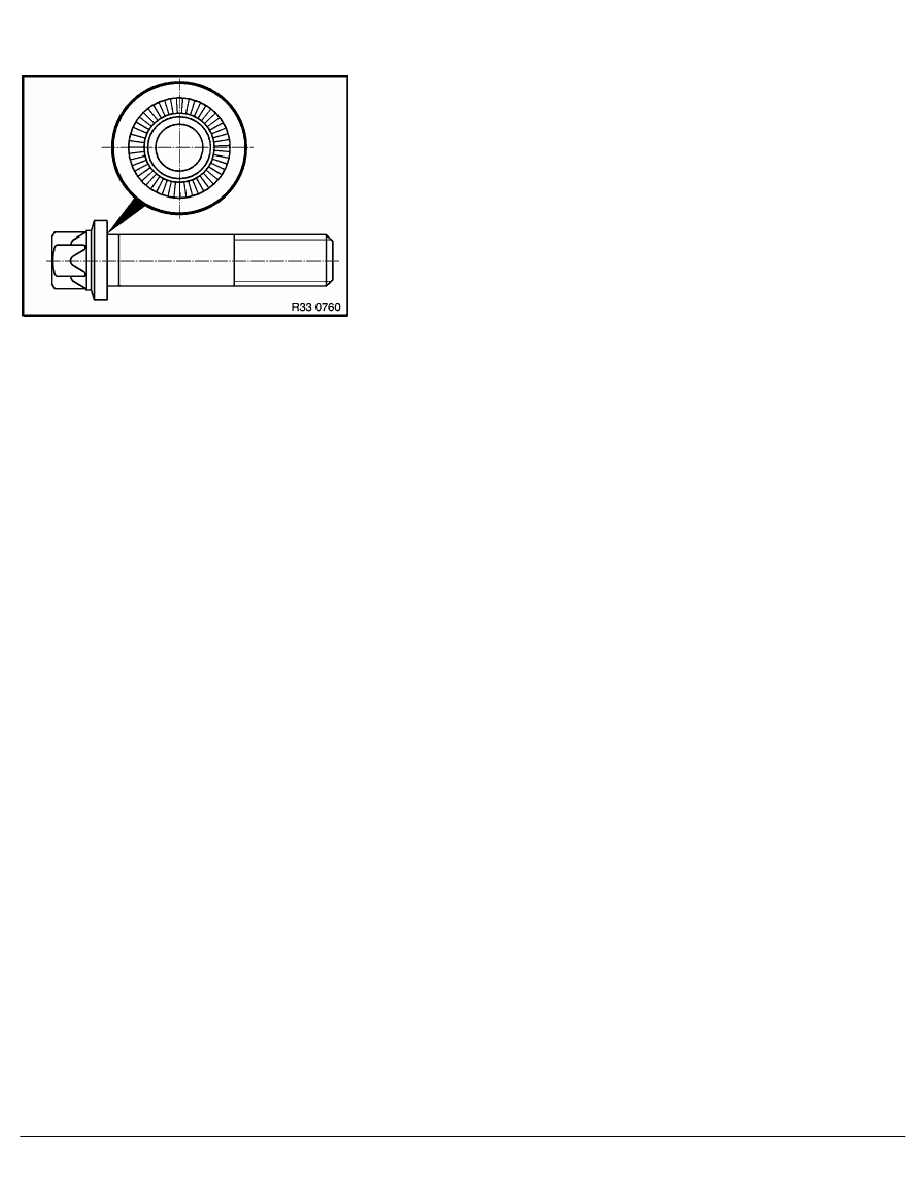

Ribbed teeth

Important!

Bolts with ribbed teeth must be replaced after they have been
released!

RA  Ribbed teeth

BMW AG - TIS

16.02.2013  17:23

Issue status (12/2007) Valid only until next DVD is issued

Copyright

Page  - 1 -
