3 Series E46 M3 (S54) COUPE
51 12 080
Removing and installing/replacing trim on
bumper trim at rear (M3)

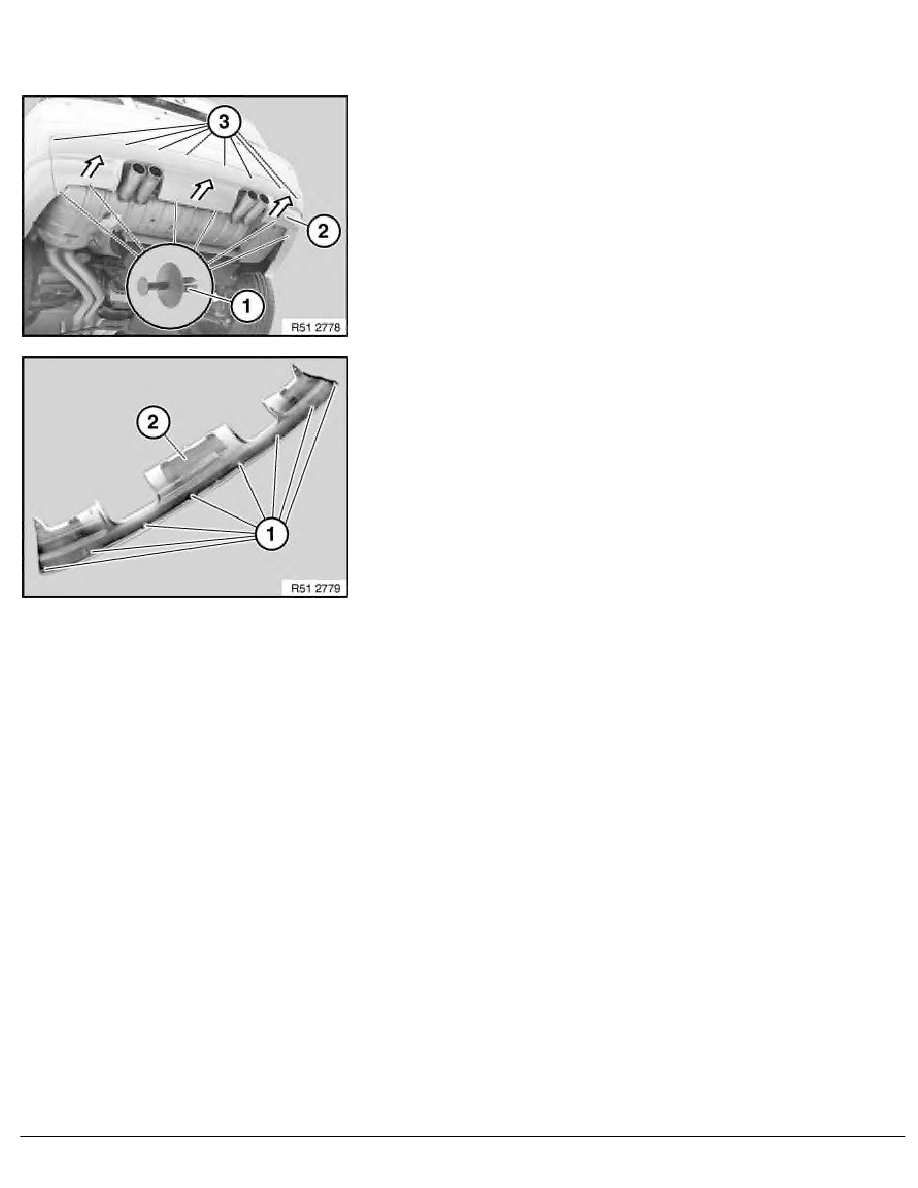

Release expansion rivets (1).
Lever out retaining lugs (3) on one side from below, then unclip
rest of trim (2).
Installation:
Retaining lugs (1) on trim (2) must not be damaged.
RA Removing and installing/replacing trim on bumper trim at rear (M3)
BMW AG - TIS
16.02.2013 20:12
Issue status (12/2007) Valid only until next DVD is issued
Copyright
Page - 1 -
