3 Series E46 M3 (S54) COUPE
51 41 060
Removing and installing armrest on front left
or right door (Coupé)
Remove front door trim panel,
refer to 51 41 000.

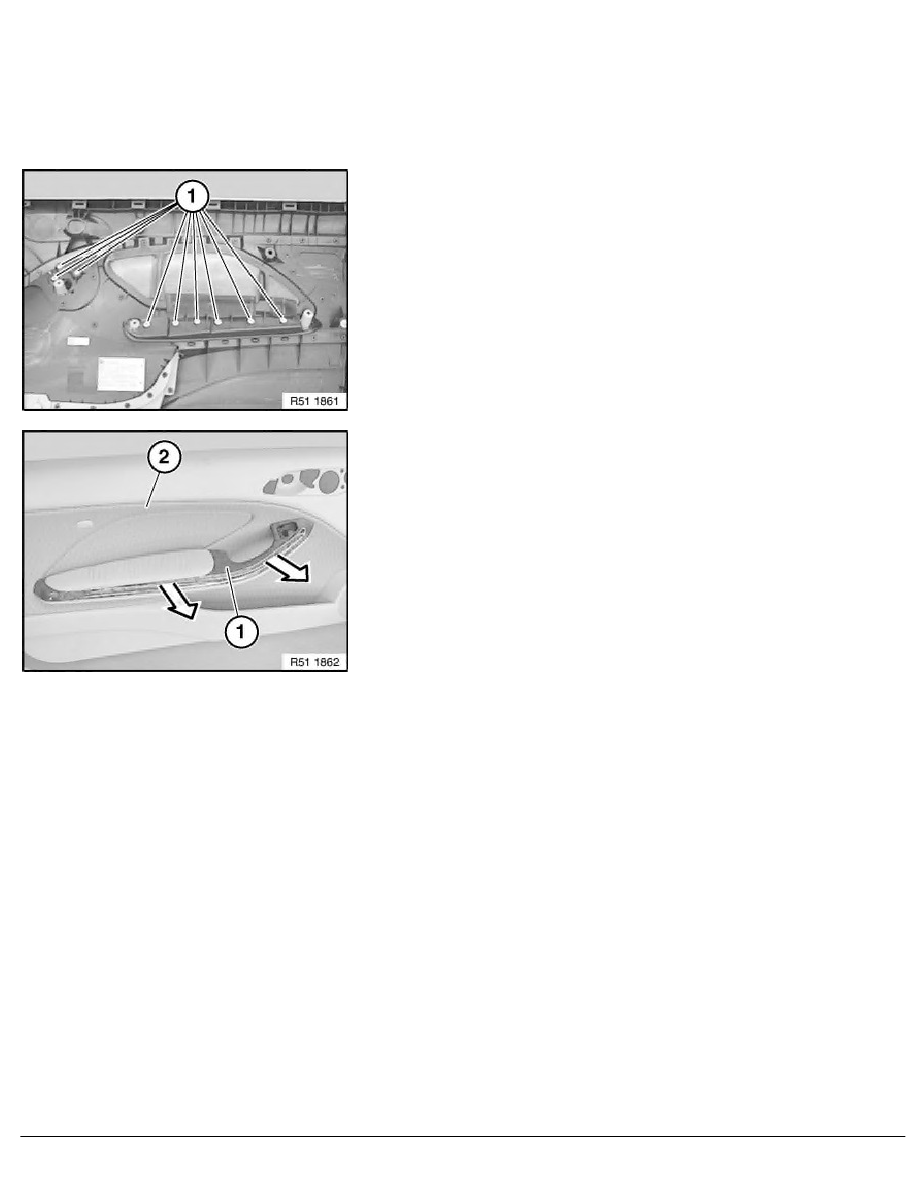

Release screws (1).
Installation:
Screw down retaining strap for airbag cover correctly.
Tightening Torque,
refer to Technical Data 51 41 3AZ.
Pull armrest (1) off door trim panel (2).
RA Removing and installing armrest on front left or right door (Coupé)
BMW AG - TIS
16.02.2013 21:17
Issue status (12/2007) Valid only until next DVD is issued
