3 Series E90 318d (N47) SAL
Installation:
Without work on the engine block which alters the piston
protrusion, use a new cylinder head gasket with the same gasket
thickness (number of holes).
If work is carried out on the crank drive or piston, the gasket
thickness must be redetermined.

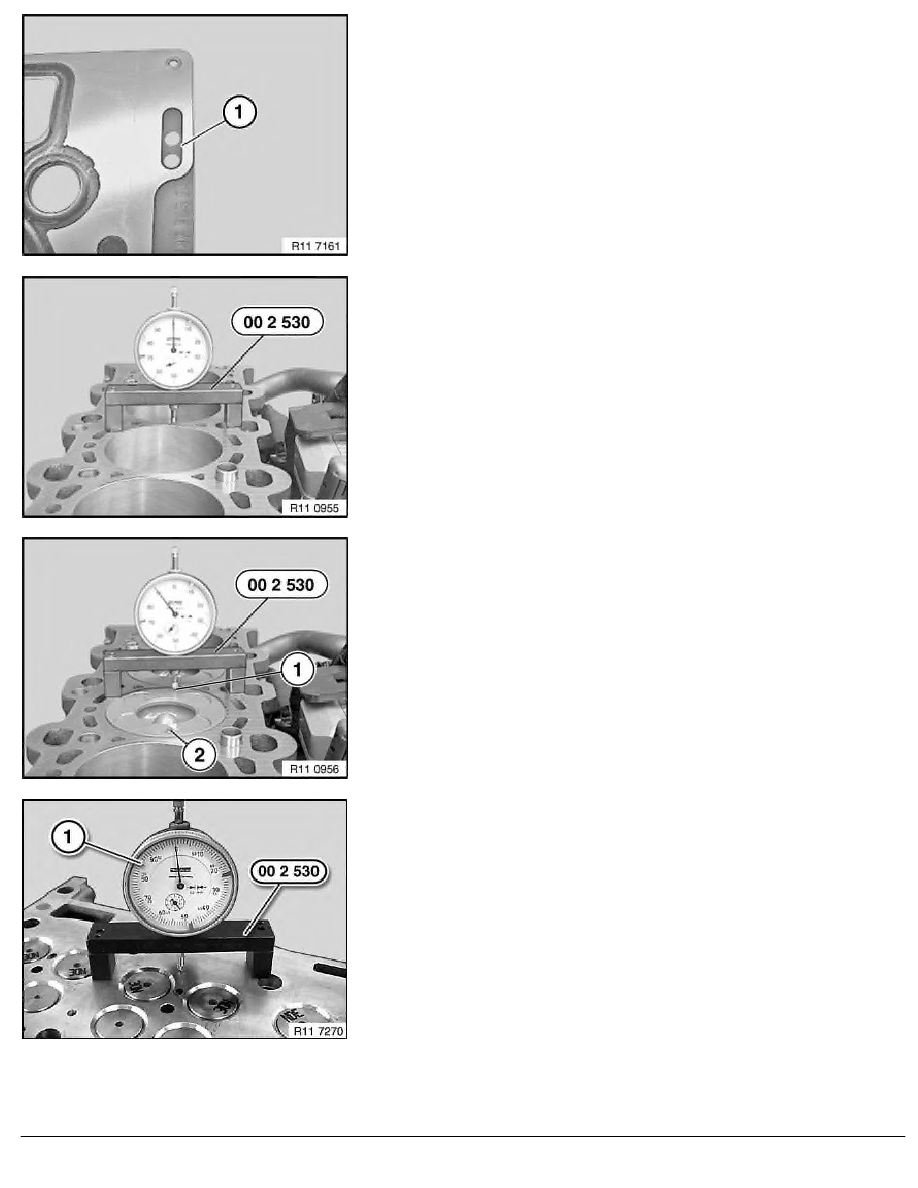

Measuring the piston clearance:
Fit dial gauge with measuring fixture special tool 00 2 530 on
cleaned cylinder sealing surface and set under pretension to zero.
Clean piston at measuring points (1 and 2).
Fit dial gauge at measuring point (1) on cleaned piston and
determine highest point by rotating crankshaft.
Measure and note down piston clearance at measuring
points (1 and 2) on all 4 pistons.
Installation:
Determine thickness of cylinder head gasket.
Position special tool 00 2 530 with dial gauge (1) on cylinder
head.
Set dial gauge (1) to zero.
