3 Series E90 318i (N43) SAL

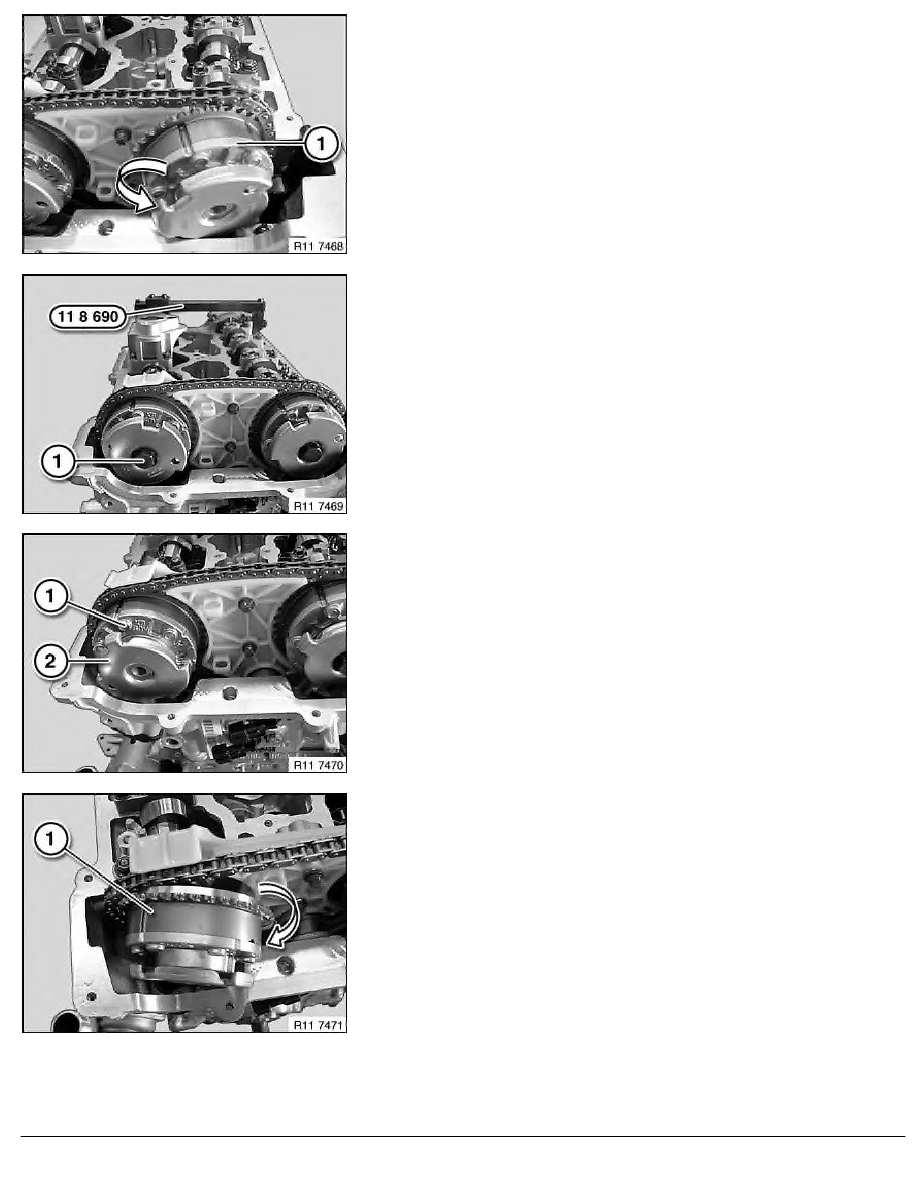

Feed out inlet adjustment unit (1) in direction of arrow.
Remove screw on exhaust adjustment unit.
Feed out exhaust adjustment unit (1) with sensor gear (2).
Feed out inlet adjustment unit (1) in direction of arrow.
RA Removing and installing/replacing inlet and exhaust camshaft adjustment units (N
