3 Series E90 335i (N54) SAL
22 11 110
Replacing left engine support arm (N54)
Necessary preliminary tasks:
-
Secure engine in installation position
-
Remove air intake filter housing.
-
Remove charge air duct.

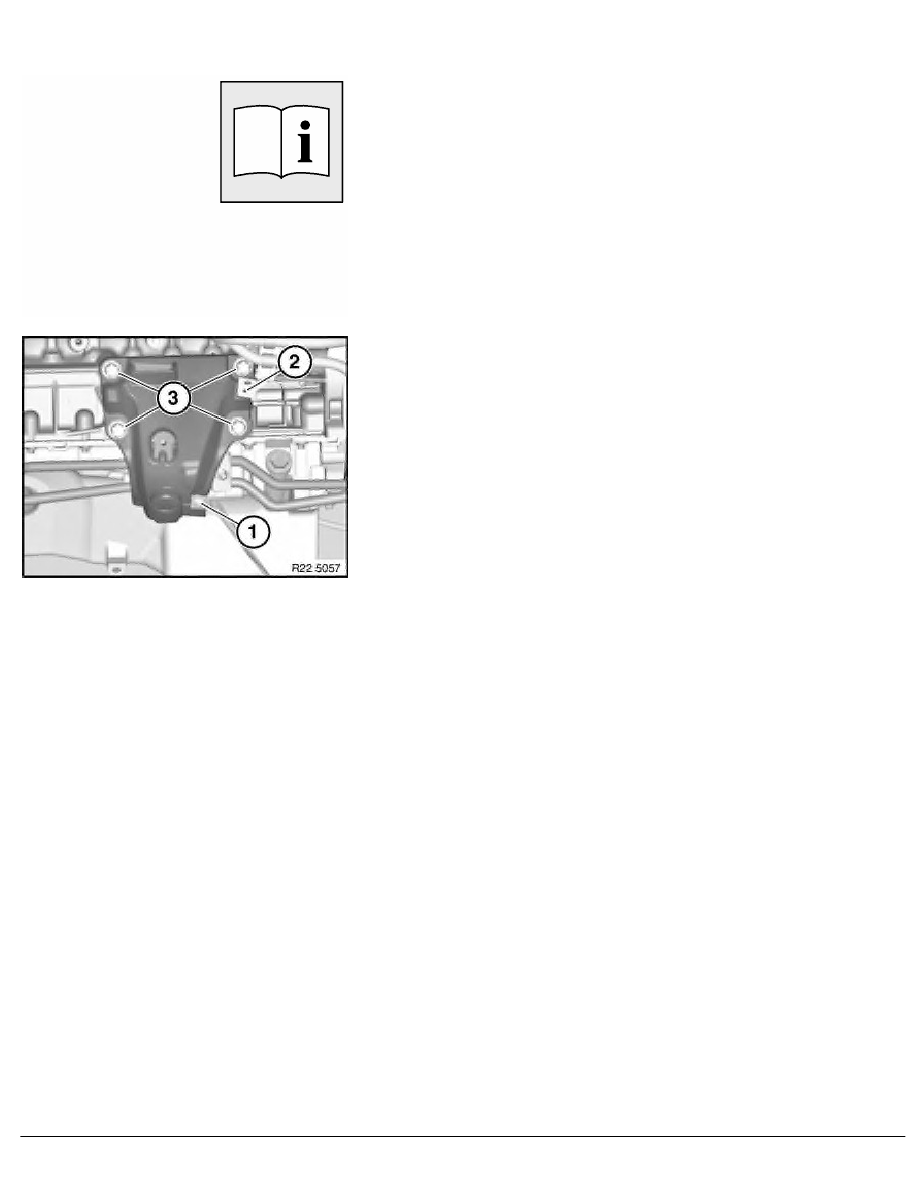

Release grounding strap (1) from engine support arm.
Release screw (2) and remove bracket.
Release screws (3).
Remove engine support arm.
Tightening torque 22 11 3AZ
RA Replacing left engine support arm (N54)
BMW AG - TIS
22.02.2013 05:17
Issue status (12/2007) Valid only until next DVD is issued
