3 Series E91 318d (N47) TOUR

Page 1
background image

41

 00 ...

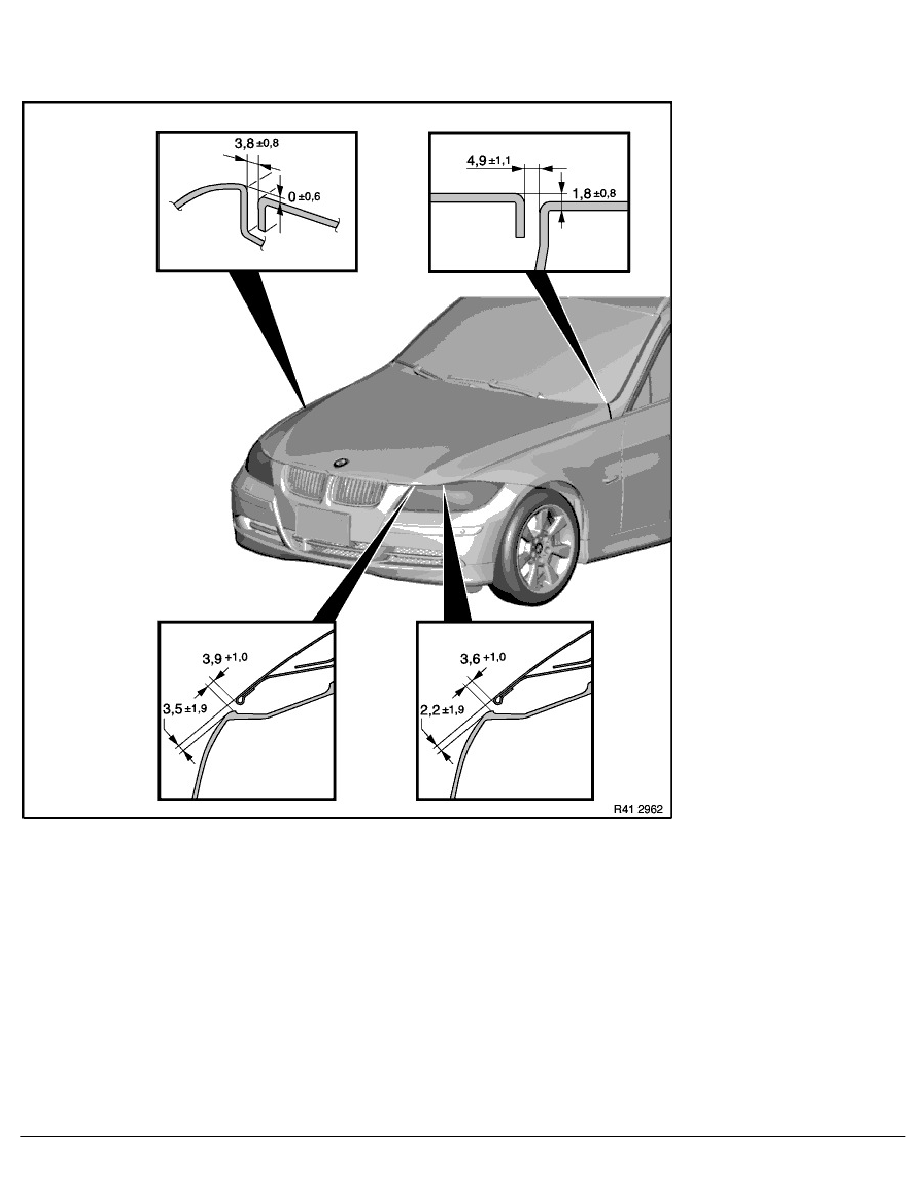

Gap dimensions, body

Dimensions in mm

RA  Gap dimensions, body

BMW AG - TIS

19.01.2013  17:22

Issue status (12/2007) Valid only until next DVD is issued

Copyright

Page  - 1 -
