3 Series E91 320i (N43) TOUR

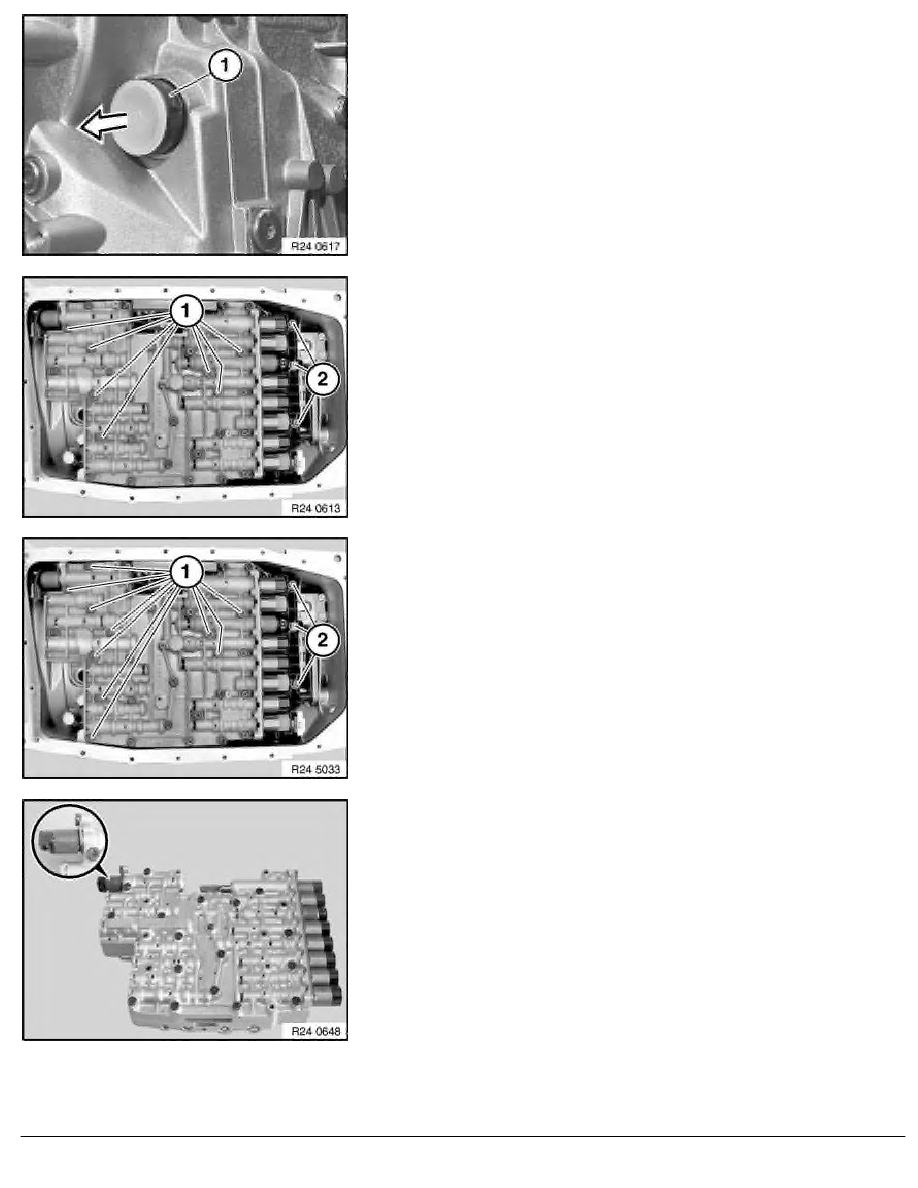

Note position of sealing sleeve.
Pull out sealing sleeve (1).
Installation:
Screw in sealing sleeve partially (lug in upper area). Turn until lug
engages in groove of transmission. Slide in sealing sleeve.
Lug on sealing sleeve must not be damaged!
Note:
GA6HP19Z
Release all screws (1 and 2).
-
1 = M6 x 58 mm
-
2 = M6 x 20 mm
Remove mechatronics.
Note:
GA6HP19Z TU
Release all screws (1 and 2).
-
1 = M6 x 58 mm
-
2 = M6 x 20 mm
Remove mechatronics.
Important!
Only installed in E65!
Mechatronics without protective bar for solenoid valve must
not be reused after removal.
