3 Series E91 320i (N43) TOUR

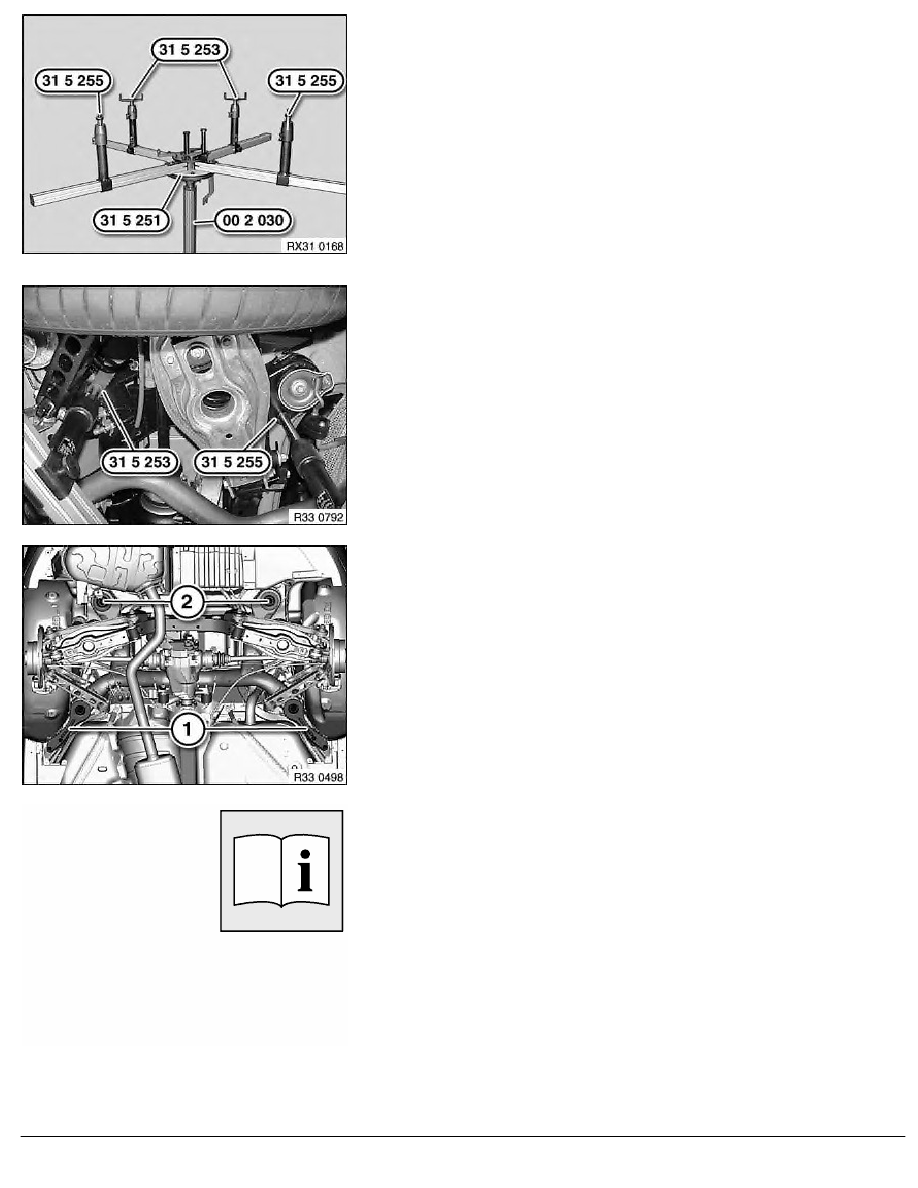

Engage special tool 31 5 251 with a 2nd person helping
completely on workshop jack 00 2 030 .
Insert special tools 31 5 255 in telescopic supports of a profile
rail pair.
Note:
In a profile rail pair two profile rails are connected to each by
toothing.
Insert special tools 31 5 253 in telescopic supports of other
profile rail pair.
Note:
The jacking points on the left side are shown.
Align special tools 31 5 253 and 31 5 255 to rear axle carrier.
Support front axle carrier by operating workshop jack 00 2 030 .
Remove compression struts (1).
Release screws (2) and swivel/remove stop plates to one side.
Lower rear axle carrier.
Installation:
Check threads for damage; if necessary, repair with Helicoil thread
inserts.
First install compression struts (1) and then tighten down
screws (2).
Tightening torque 33 33 1AZ
.
After installation:
•
Bleed braking system
RA Lowering/raising rear axle carrier (universal lifter)
