3 Series E91 320i (N43) TOUR
41 21 510
Replacing front left door pillar (front side
panel removed)
Read contents of Body, General.
For stripping and rigging operations, refer to texts on KSD
CD (FR number 41 21 510).
Spot-weld bonding is used on this vehicle. Observe specific
procedure.
Remove or cover those vehicle components in the repair area
which are susceptible to heat or dust.
Use only approved spot-welding apparatus for repairs!
Place vehicle on straightening bench.

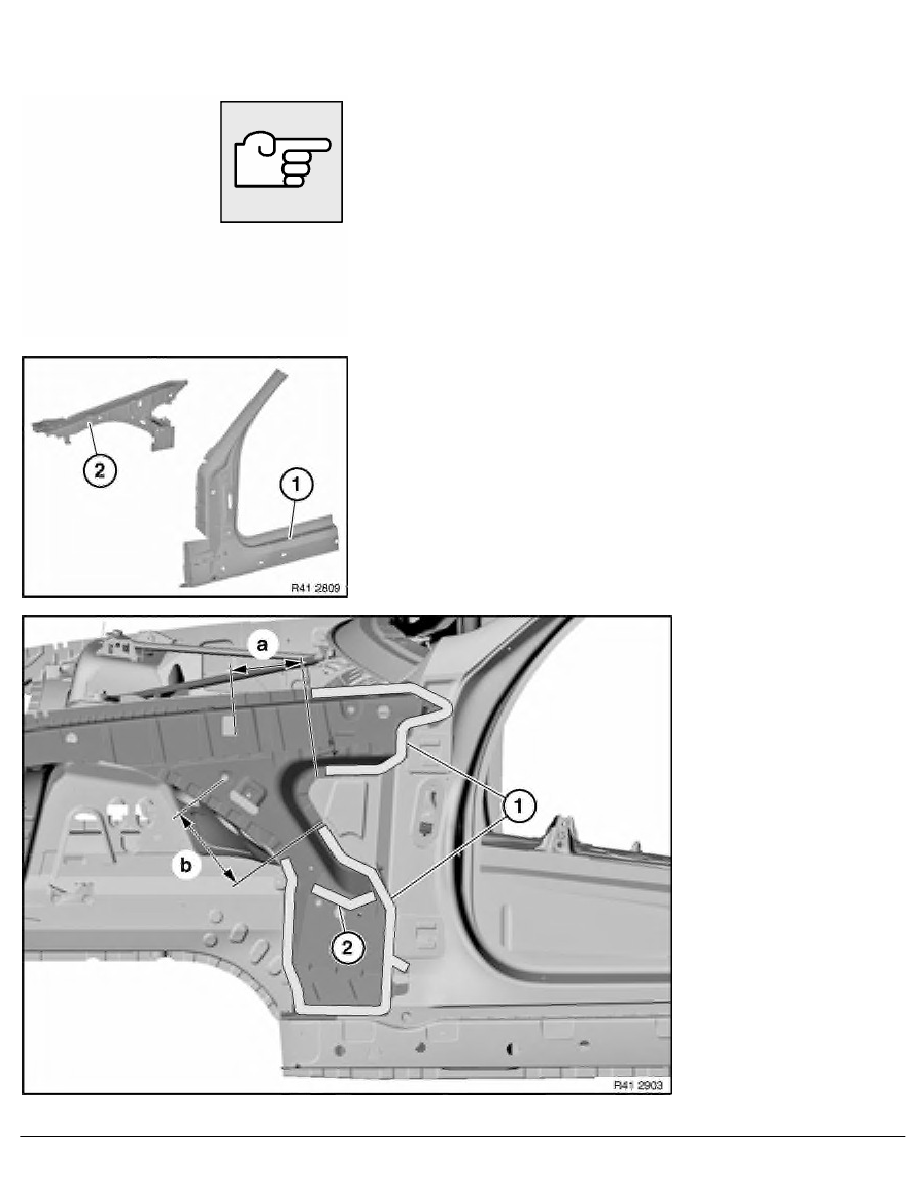

Following new body parts are required (refer to EPC):
-
(1) A-pillar, outer
-
(2) Support carrier, wheel arch, outer
-
(3) Shaped part, support carrier (not shown)
-
(4) Shaped part, A-pillar, bottom inner (not shown)
Mark severance cuts in accordance with specified measurements and cut.
