3 Series E91 320i (N43) TOUR

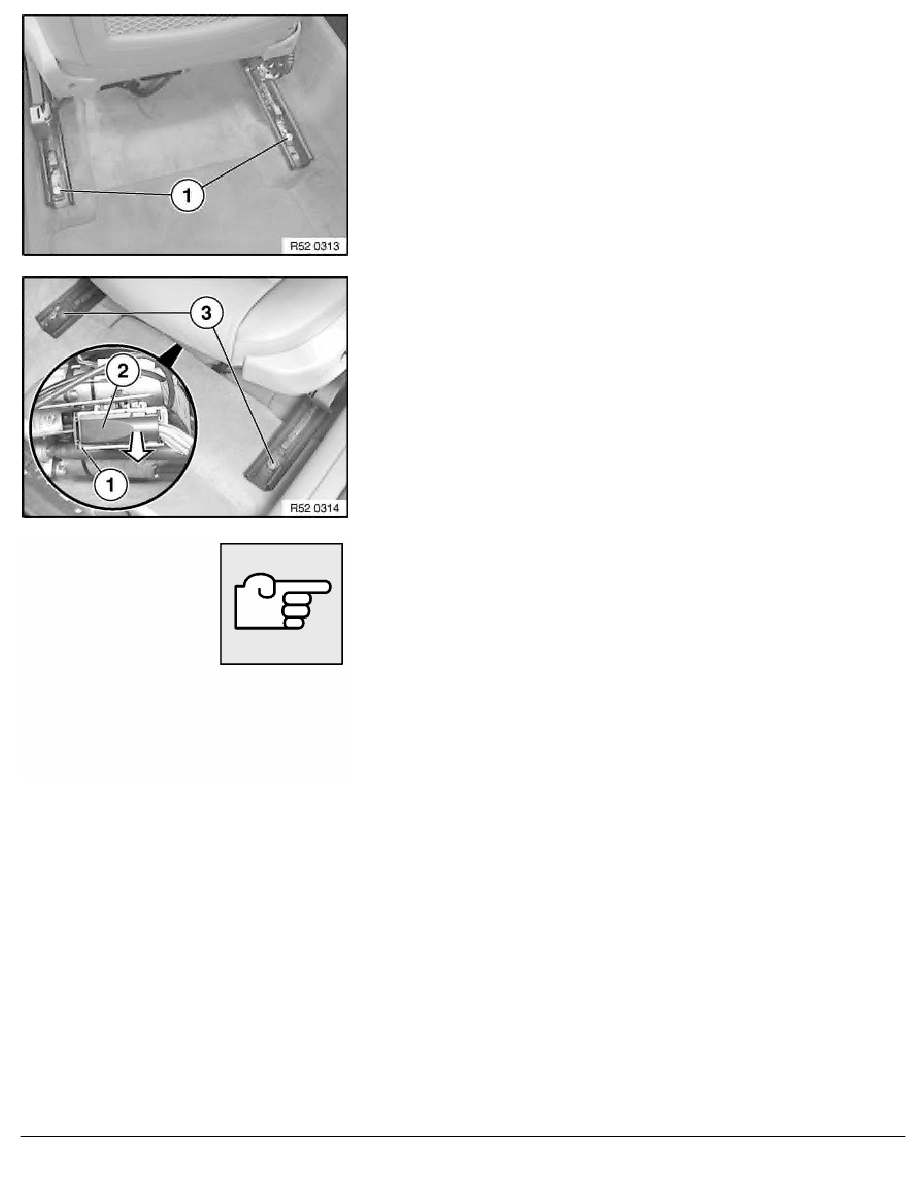

Release screws (1).
Installation:
Replace screws.
Tightening torque 52 10 1AZ
.
Move front seat as far back as possible.
Release screws (3).
Installation:
Replace screws.
Tightening torque 52 10 1AZ
.
Unlock plug connection (1) and disconnect plug (2).
Important!
Cover door sill with protective covers (risk of damage).
Lift out front seat.
Installation:
Carpet must not get between seat rails and floor pan in area of
fastening points (grating noises).
RA Removing and installing left or right front seat (normal / manual)
