3 Series E91 335xi (N54) TOUR

Page 1
background image

51 47 173

Removing and installing/replacing flap in
luggage compartment trim on left

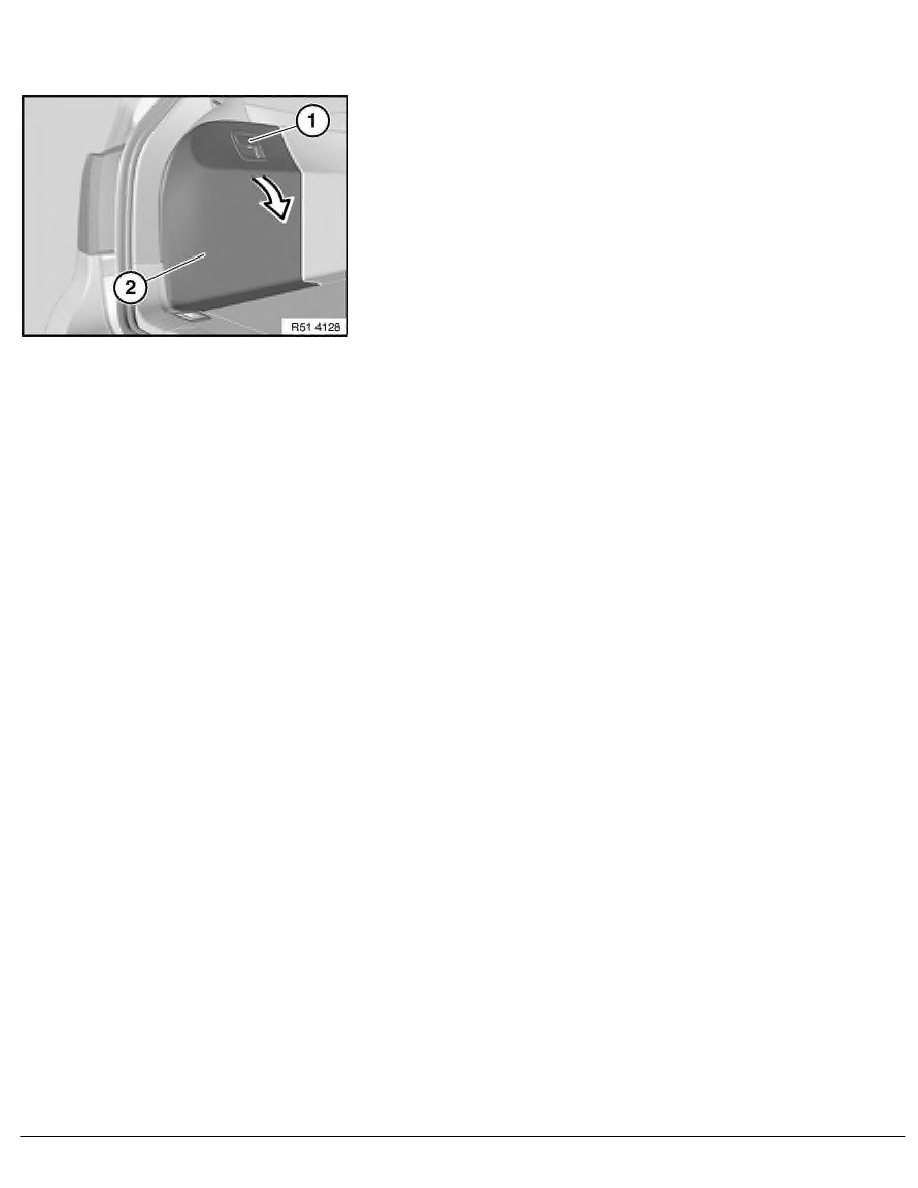

Pull release handle (1).

Open flap (2) in direction of arrow and remove.

RA  Removing and installing/replacing flap in luggage compartment trim on left

BMW AG - TIS

23.02.2013  23:11

Issue status (12/2007) Valid only until next DVD is issued

Copyright

Page  - 1 -
