3 Series E92 320d (N47) COUPE

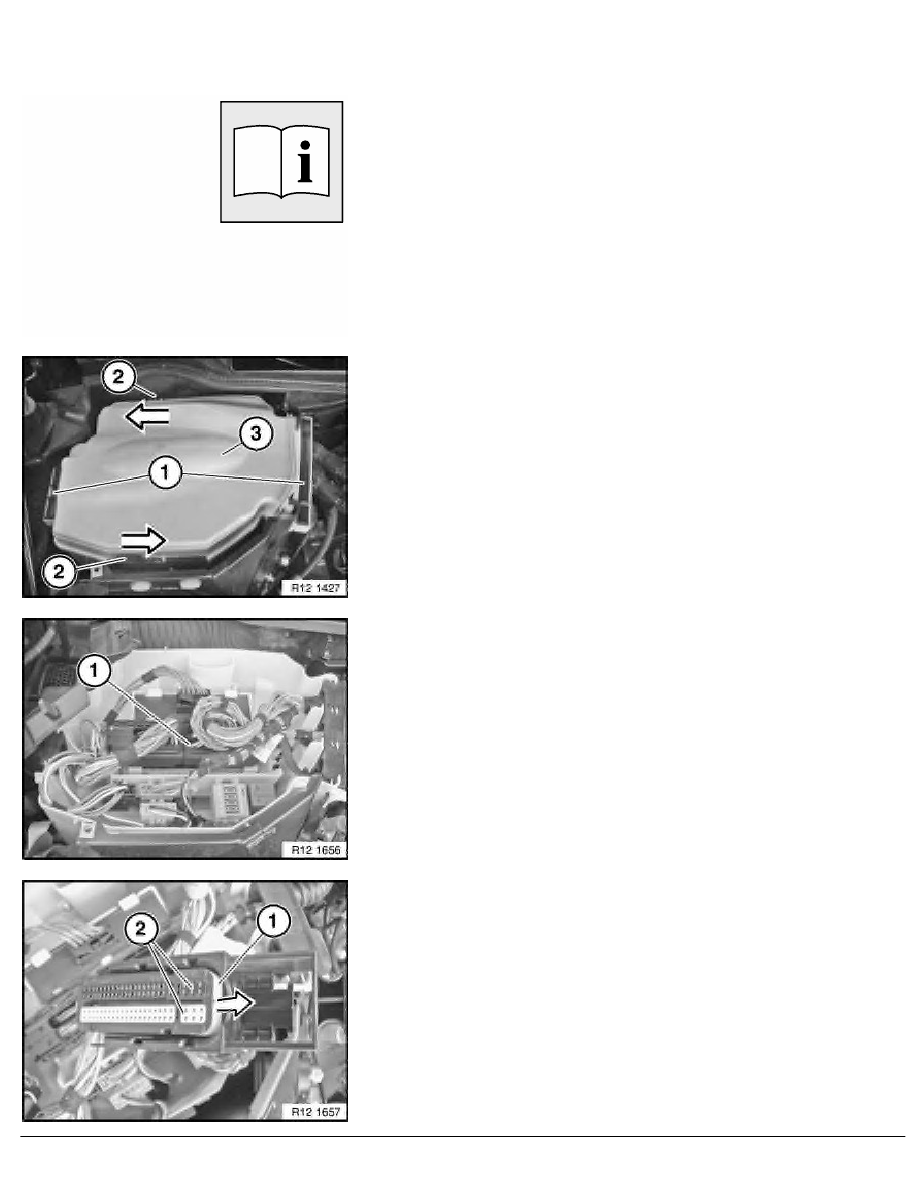

Release bolts (1) and carrier plate (2) approx. 20 mm in
direction of arrow.
Note:
For purposes of clarity, this operation is shown on the removed
engine.
Pull out profile seals (1) in upward direction.
Installation:
To prevent leaks, you must install profile seals correctly.
Unlock plug (1) and remove.
Unlock plugs (1) on injectors and disconnect.
RA Replacing wiring harness section for injectors (N47)
