3 Series E92 320d (N47) COUPE
Note:
On the M3 a ball joint is fitted in the guide arm.

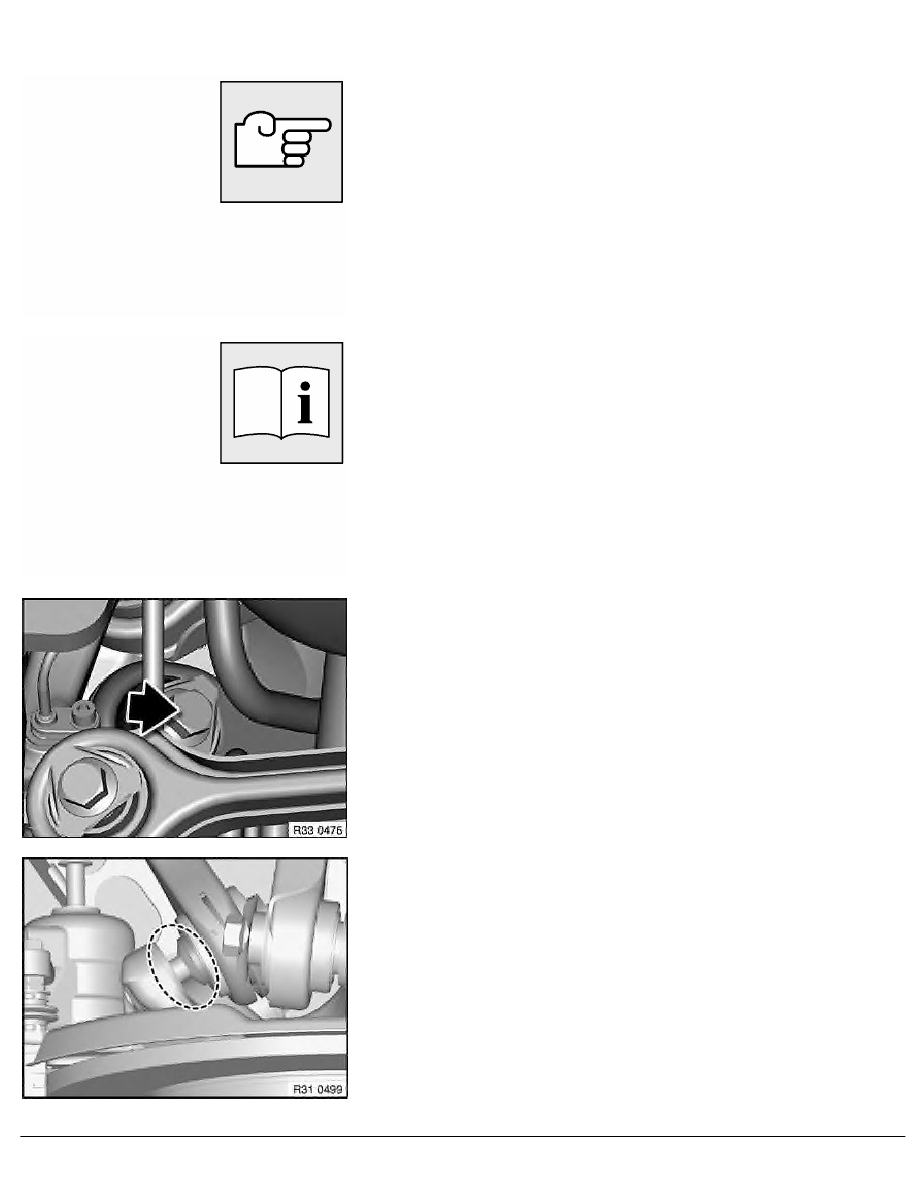

Slacken nut (1).
Unscrew bolt towards rear and remove guide arm (2).
Installation:
Bolt head must point to rear.
Replace self-locking nut.
Tightening torque 33 32 3AZ
.
After installation:
•
Perform chassis alignment check
RA Replacing a guide arm
BMW AG - TIS
21.01.2013 04:12
Issue status (12/2007) Valid only until next DVD is issued
