3 Series E92 M3 (S65) COUPE
11 31 072
Checking camshaft timing (S65)
Special tools required:
•
11 5 320
•
11 9 970
•
11 9 971
•
11 9 972
Important!
Bank (2), cylinders (5 - 8), is checked first.
The timing of bank (1) at cylinders (1-4) can only be checked
at overlap TDC.
The lettering (E1 and A1) must point downwards.
Necessary preliminary tasks:
•
Remove fan cowl with electronic fan.
•
Remove left cylinder head cover.
•
Remove right cylinder head cover.
•
Remove all spark plugs.
Important!
Danger of mixing up both special tool bores.

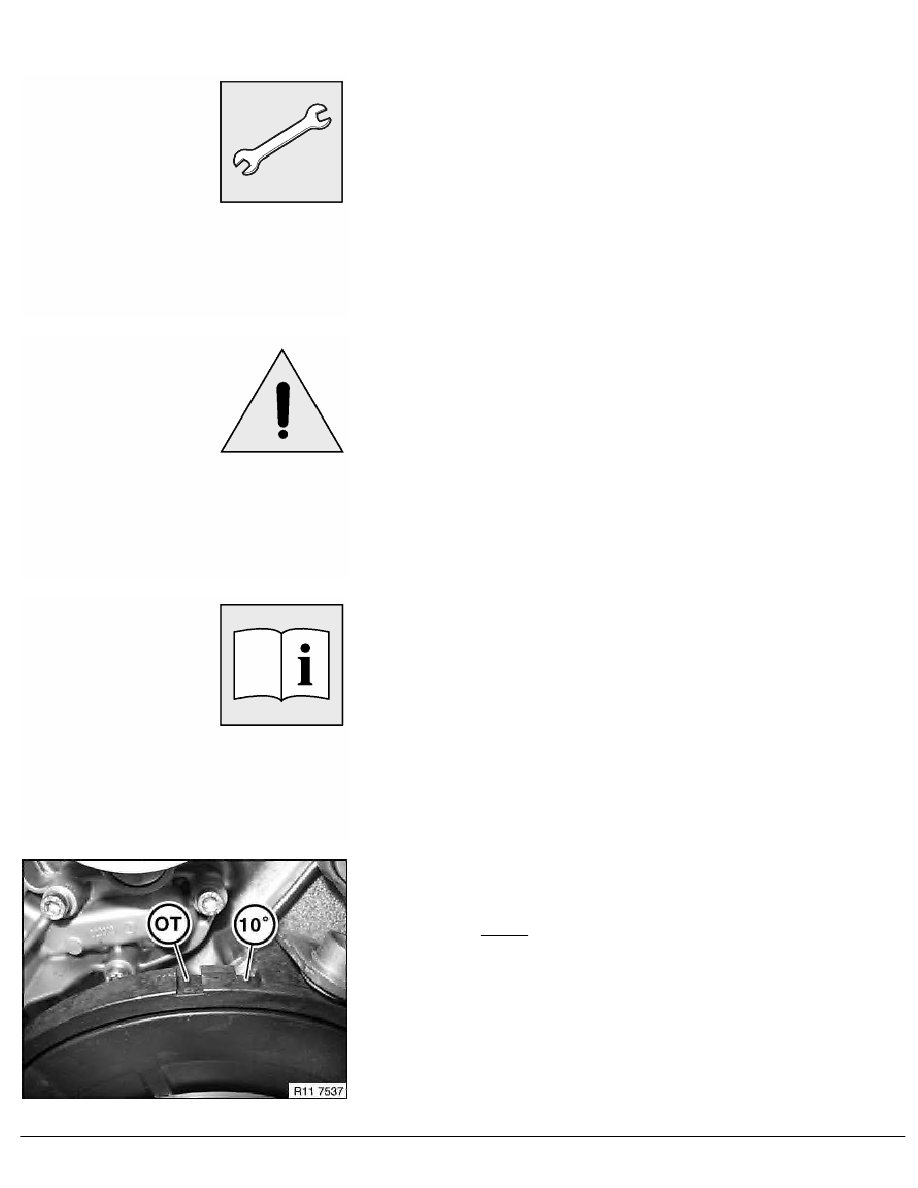

10
°
10
°
before TDC (top dead centre)
OT Top dead centre
RA Checking camshaft timing (S65)
