3 Series E92 M3 (S65) COUPE

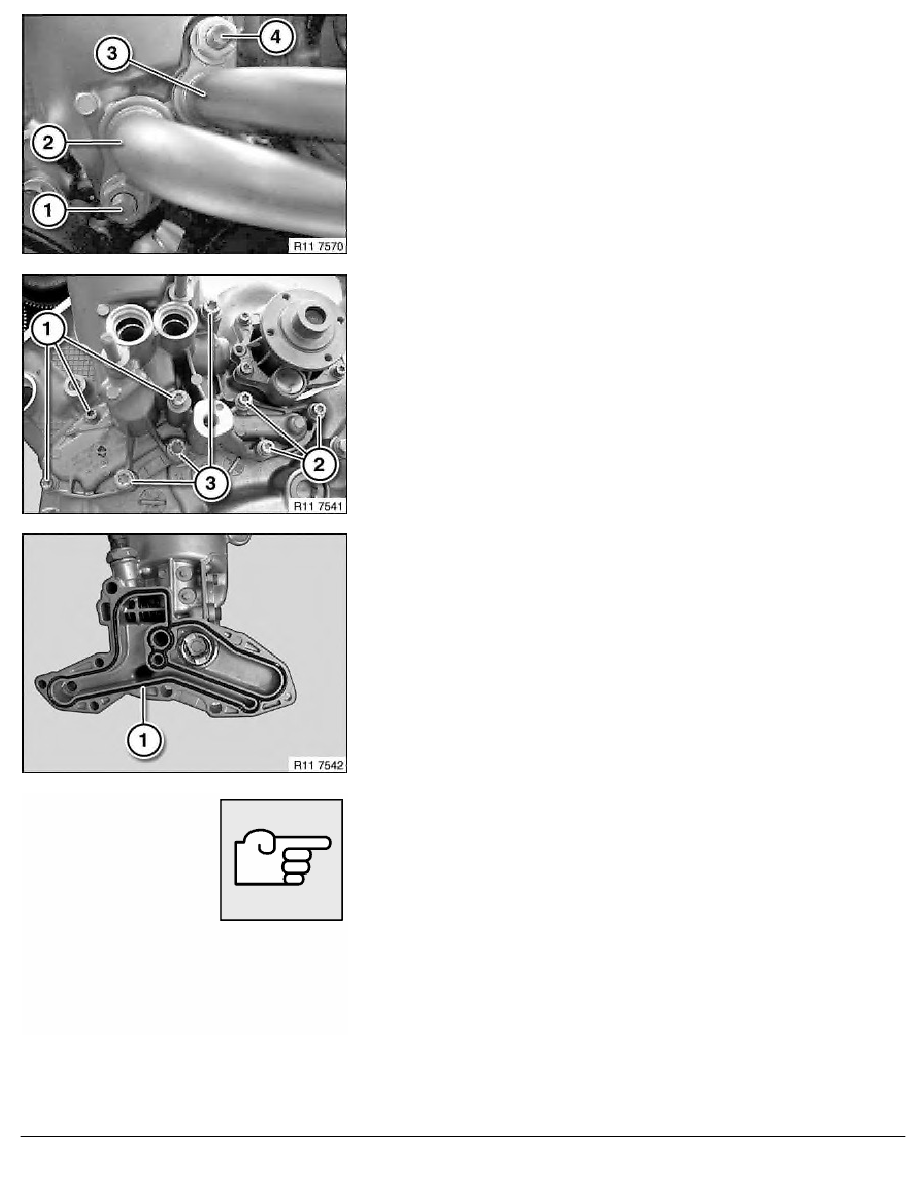

Release nuts (1 and 4).
Tightening torque: 11 42 3AZ
Detach lines (2 and 3).
Installation:
Replace O-rings.
Release screws (1).
Release screws (2).
Release screws (3).
Tightening torque: 11 42 2AZ
Lift out oil filter housing.
Installation:
Replace seal (1).
Assemble engine.
Park vehicle on a horizontal surface.
Allow engine at normal operating temperature to run for 3 minutes
with increased revs (min. 1000 / max. 1500 rpm).
Read off engine oil level in instrument cluster or on Control
Display.
Top up engine oil if necessary.
RA Removing and installing, sealing/replacing main flow oil filter (S65)
