Carry over the work step shown symmetrically to the other side of
the vehicle.

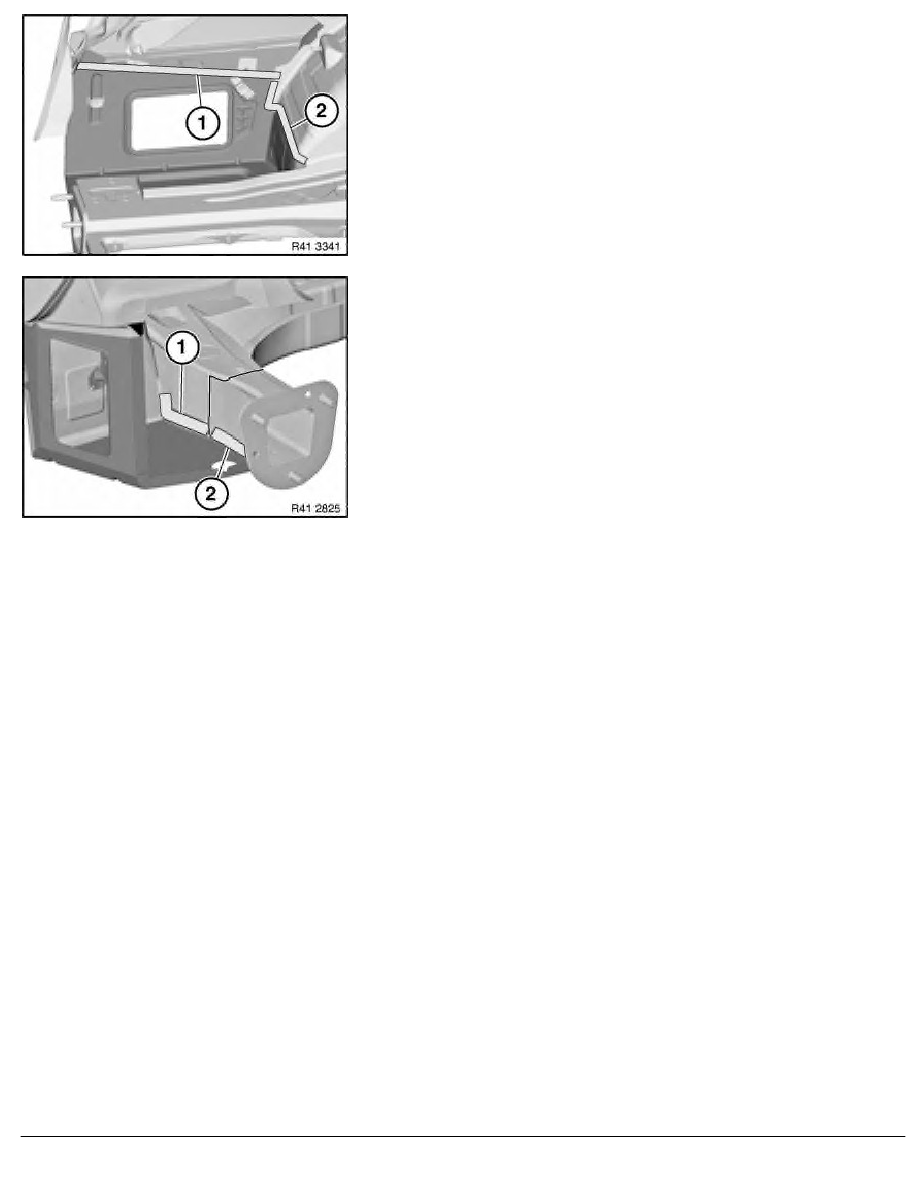

Open weld joints in areas (1) and (2).

Carry over the work step shown symmetrically to the other side of
the vehicle.

Open weld joints in area (1).

Installation:

Weld new component in area (2) additionally.

Adjust new parts to fit with straightening attachment or universal
mount.

Before welding in, also adjust tail panel and rear lights to fit.

RA  Replacing complete rear luggage compartment floor (tail panel removed)
