3 Series E93 323i (N52K) CONVER
52 16 050
Removing and installing or replacing lumbar
cushion on front seat
Necessary preliminary tasks:
•
Partially remove backrest cover

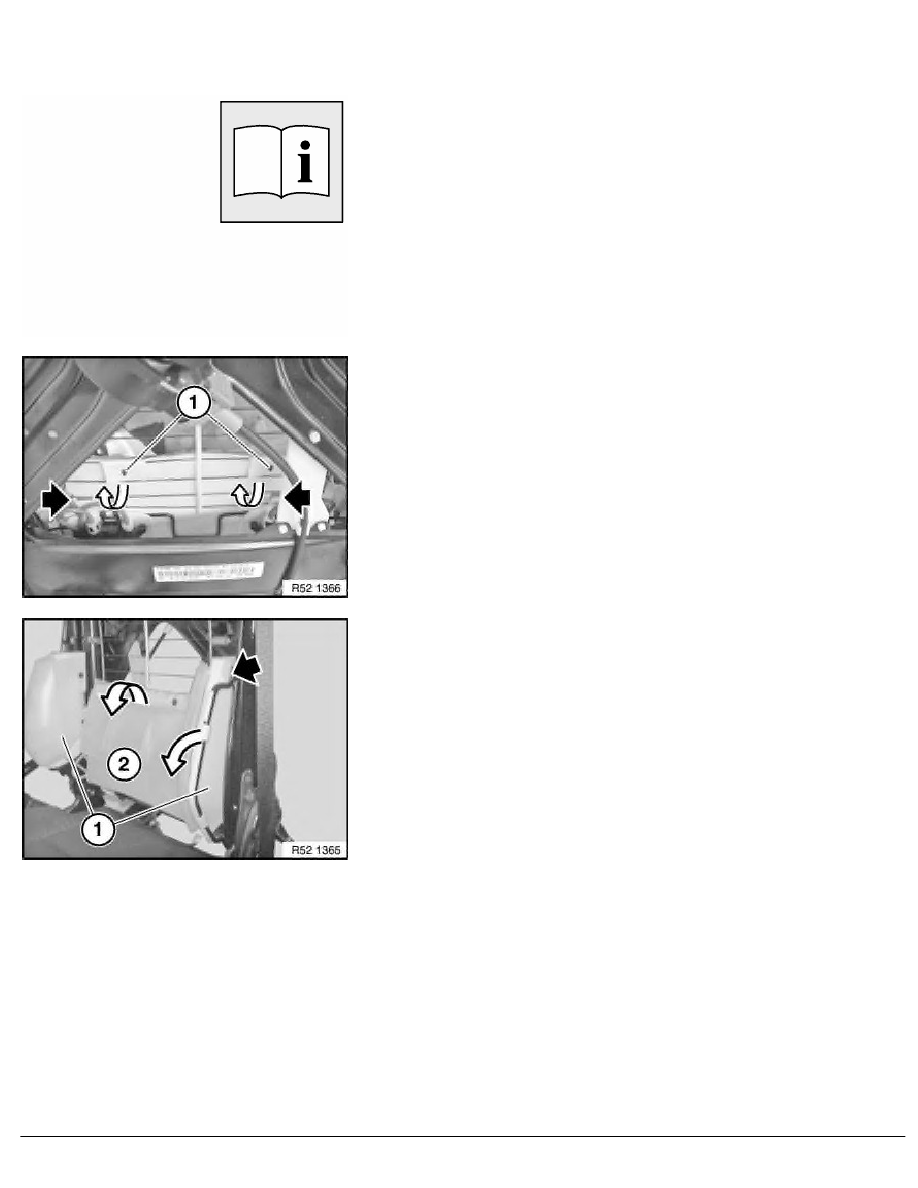

Lift fleece tabs of lumbar support cushion carrier from plastic clips
(1).
Installation:
Hook lumbar support cushion over first and fourth wire.
Detach lumbar cushion (2) from spring wire.
Unclip air cushion (1) for backrest width adjustment with carrier
from backrest frame.
Installation:
Make sure the carrier for backrest width adjustment is fitted
correctly on the backrest frame.
RA Removing and installing or replacing lumbar cushion on front seat
