3 Series E93 323i (N52K) CONVER
54 37 ...
Installing guide plate for cowl panel baseplate
(build date up to 07/2007)
Necessary preliminary tasks:
•
Remove cowl panel trim

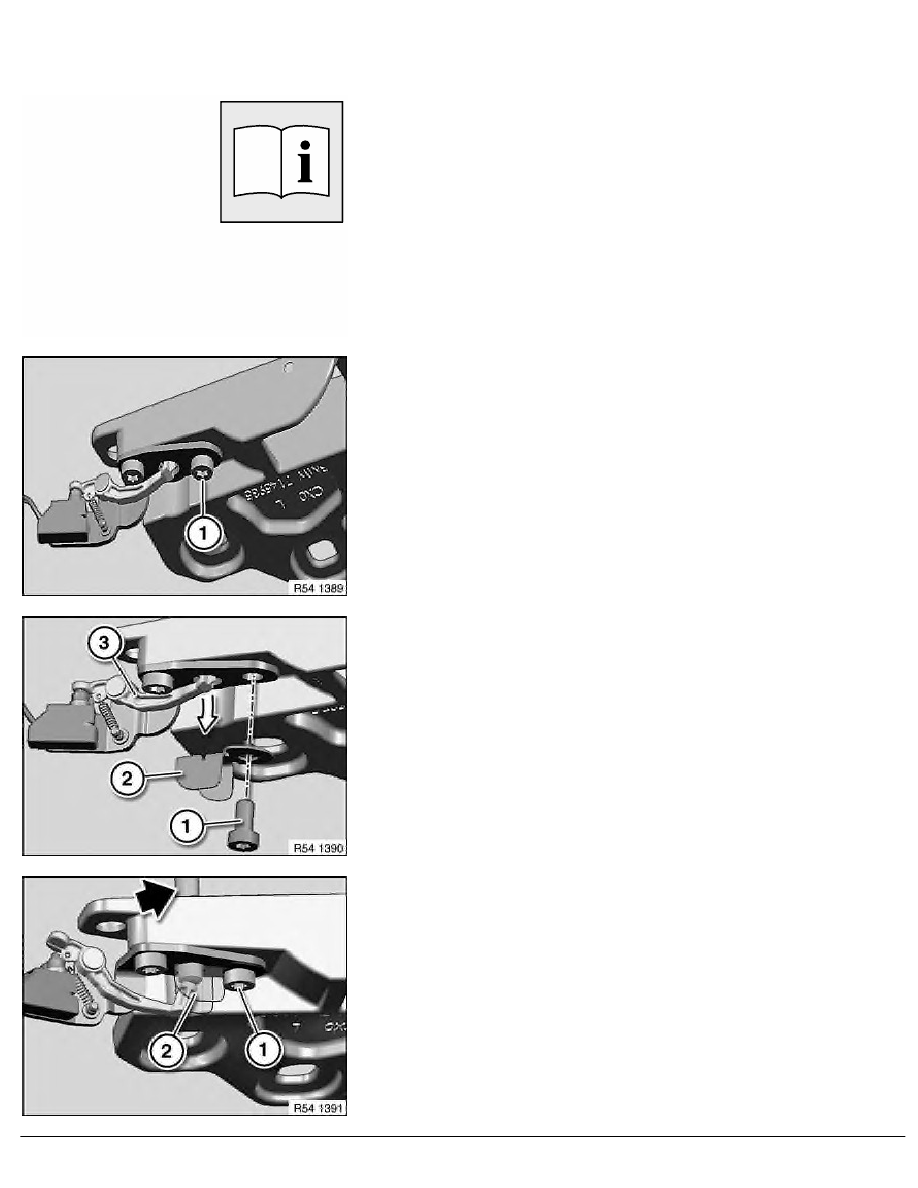

Release screw (1).
Pull back microswitch lever (3).
Mount guide plate (2) loose with screw (1).
Align guide plate (2) with 6.5 mm dia. dowel pin (or drill bit shank).
Tighten screw (1).
Tightening torque: 54 37 26AZ
.
RA Installing guide plate for cowl panel baseplate (build date up to 07/2007)
BMW AG - TIS
25.01.2013 11:29
Issue status (12/2007) Valid only until next DVD is issued
