3 Series E93 323i (N52K) CONVER
61 31 100
Removing and installing/replacing switch for
longitudinal seat adjustment
Necessary preliminary tasks:
•
Remove trim for release mechanism from front seat

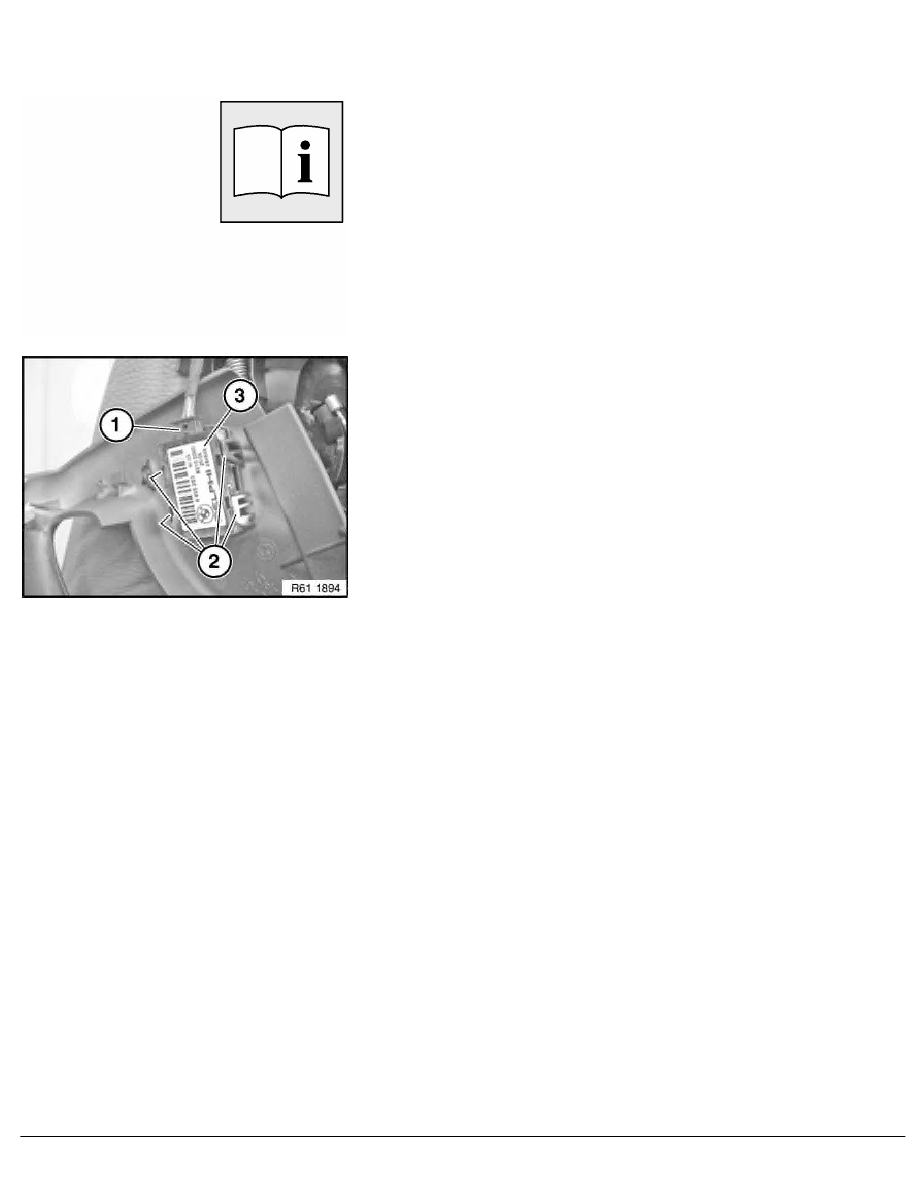

Disconnect plug connection (1).
Unlock retaining tabs (2) and press switch combination (3) out
of trim.
Installation:
Make sure switch combination (3) is correctly seated in retaining
tabs (2).
RA Removing and installing/replacing switch for longitudinal seat adjustment
BMW AG - TIS
25.01.2013 12:25
Issue status (12/2007) Valid only until next DVD is issued
