3 Series E93 323i (N52K) CONVER
72 11 096
Removing and installing or replacing rear left
or right lower belt fitting
Necessary preliminary tasks:
•
Remove rear seat

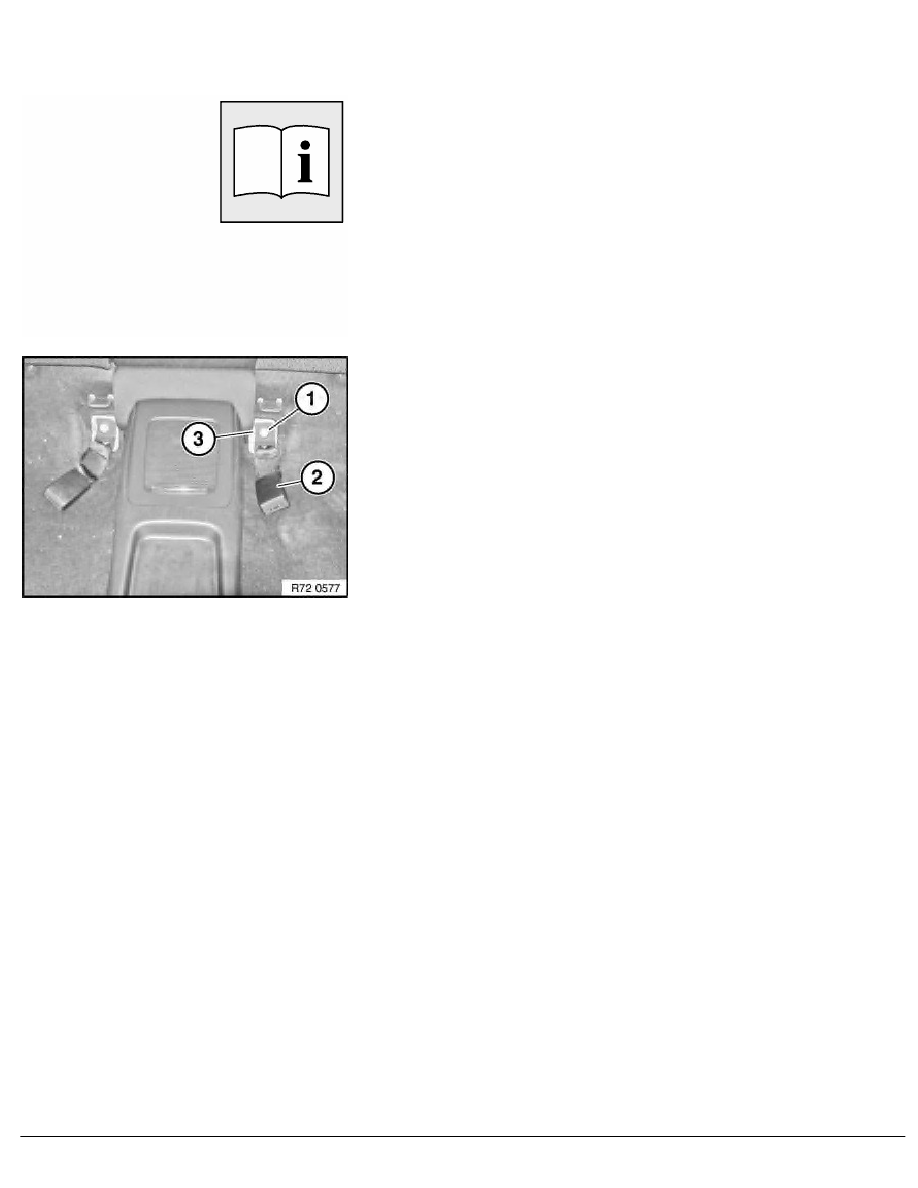

Illustration show removal of the left lower belt fitting; proceed in
the same way for the right fitting.
Release screw (1).
Tightening torque 72 11 23AZ
.
Remove lower belt fitting (2).
Installation:
Pin (3) determines the installation position and prevents lower
belt (2) from turning.
RA Removing and installing or replacing rear left or right lower belt fitting
BMW AG - TIS
25.01.2013 14:40
Issue status (12/2007) Valid only until next DVD is issued
