3 Series E93 330i (N52K) CONVER

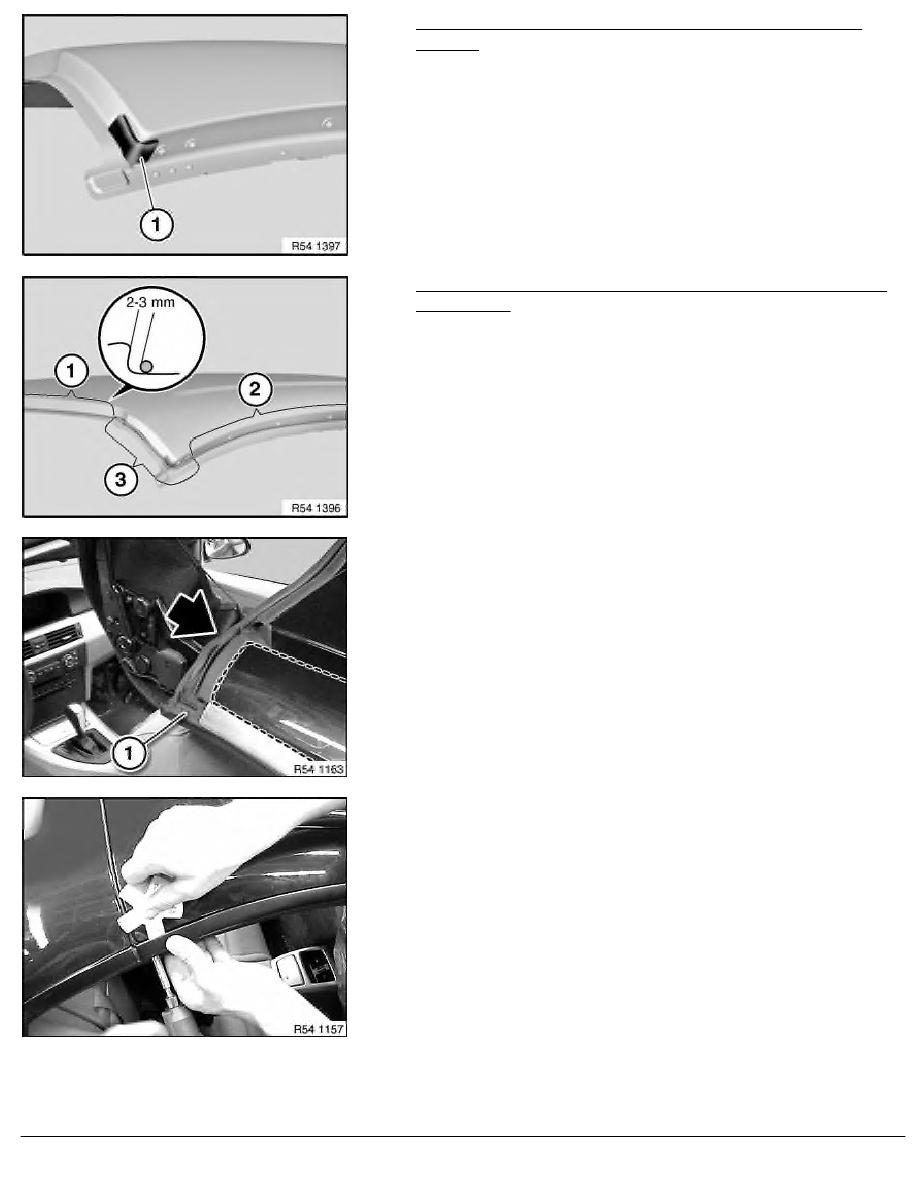

Overview of butylene flat tape laying on rear roof shell corner,
left/right:
1.
Apply butylene flat tape from threaded bush to shortly after
metal overlap to roof shell corner.
Overview of butylene thread laying on middle roof shell, side/rear
left and right:
1.
Apply 4 mm dia. butylene thread at distance of 2-3 mm to
roof edge.
2.
Apply 4 mm dia. butylene thread in sheet metal groove.
3.
Apply 7 mm dia. butylene thread in sheet metal groove.
Installation:
Connect and smooth butylene thread joints with plastic wedge.
Installation:
A second person will be need to help install the seal.
Position seal (1) at front corner on left and right of roof shell.
Press seal down in area (1).
Installation:
Press seal down at side.
Carry over noted gap dimensions and screw down seal.
Tightening torque: 54 37 01AZ
.
Mount seal at rear on roof shell.
