3 Series E93 330i (N52K) CONVER
Installation:
The assembly carrier must rest free of tension on the main mount. Otherwise stress may occur at the main
mount that could cause faulty installation.

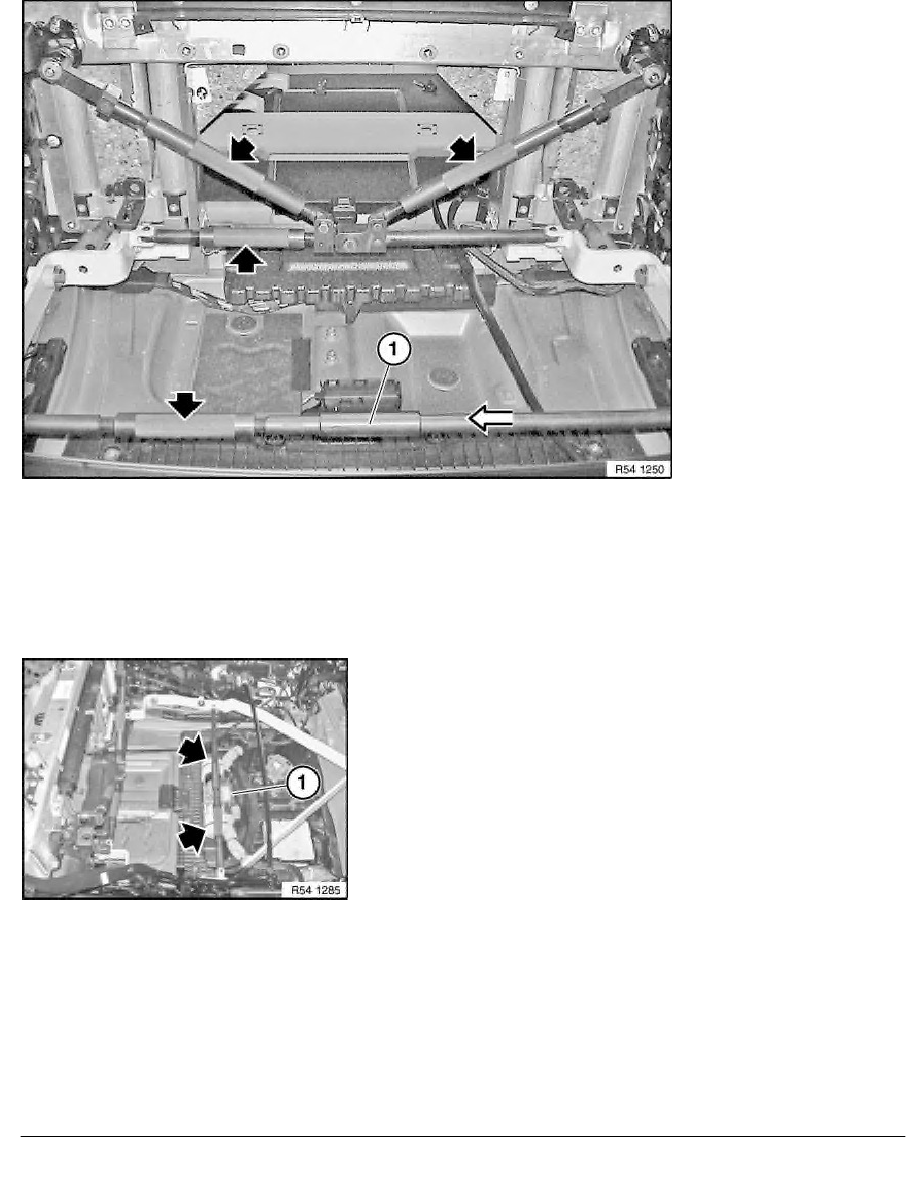

Without using excessive force, pull tensioning rods outwards over rotary sleeves.
Slide locking sleeve (1) over pivot joint.
Secure hydraulic control unit (1) with cable ties to assembly
carrier.
RA Removing and installing roof module
