3 Series E93 330i (N52K) CONVER
Important!

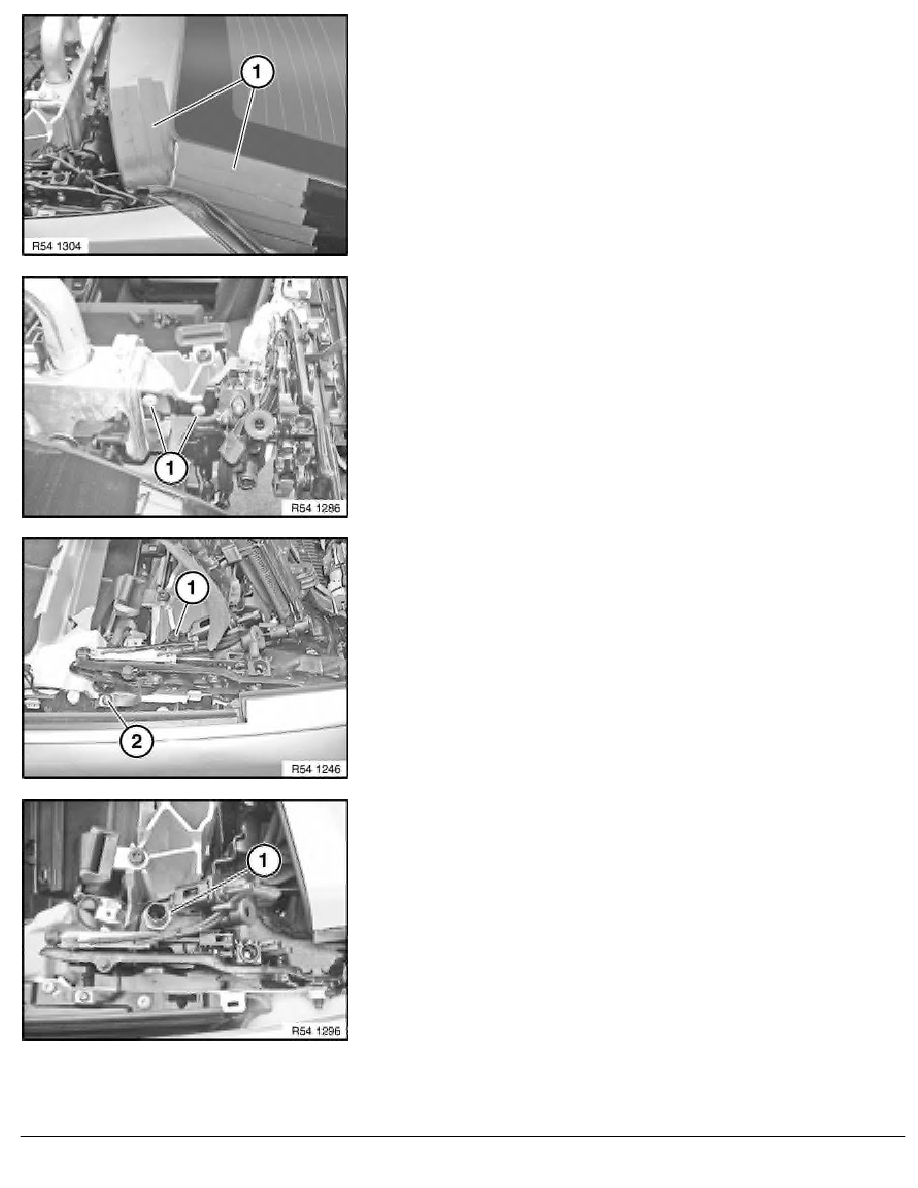

Tape off corners of roof shell 1 and 3. Risk of damage when
positioning gauge for coupling fastener and assembly.
Release left and right screws (1).
Remove holder on left and right.
Release screws (1) on left and right coupling fasteners.
Tightening torque: 54 37 12AZ
.
Release screws (2) on grounding strap on left and right.
Release lock nut (1) with special tool
54 0 190 .
Tightening torque: 54 37 24AZ
.
Turn barrel screw back.
Tightening torque: 54 37 22AZ
.
Installation:
Bring barrel screws into contact with special tool 54 0 180 in
conjunction with 00 9 450 .
