5 Series E39 520i (M52) TOUR

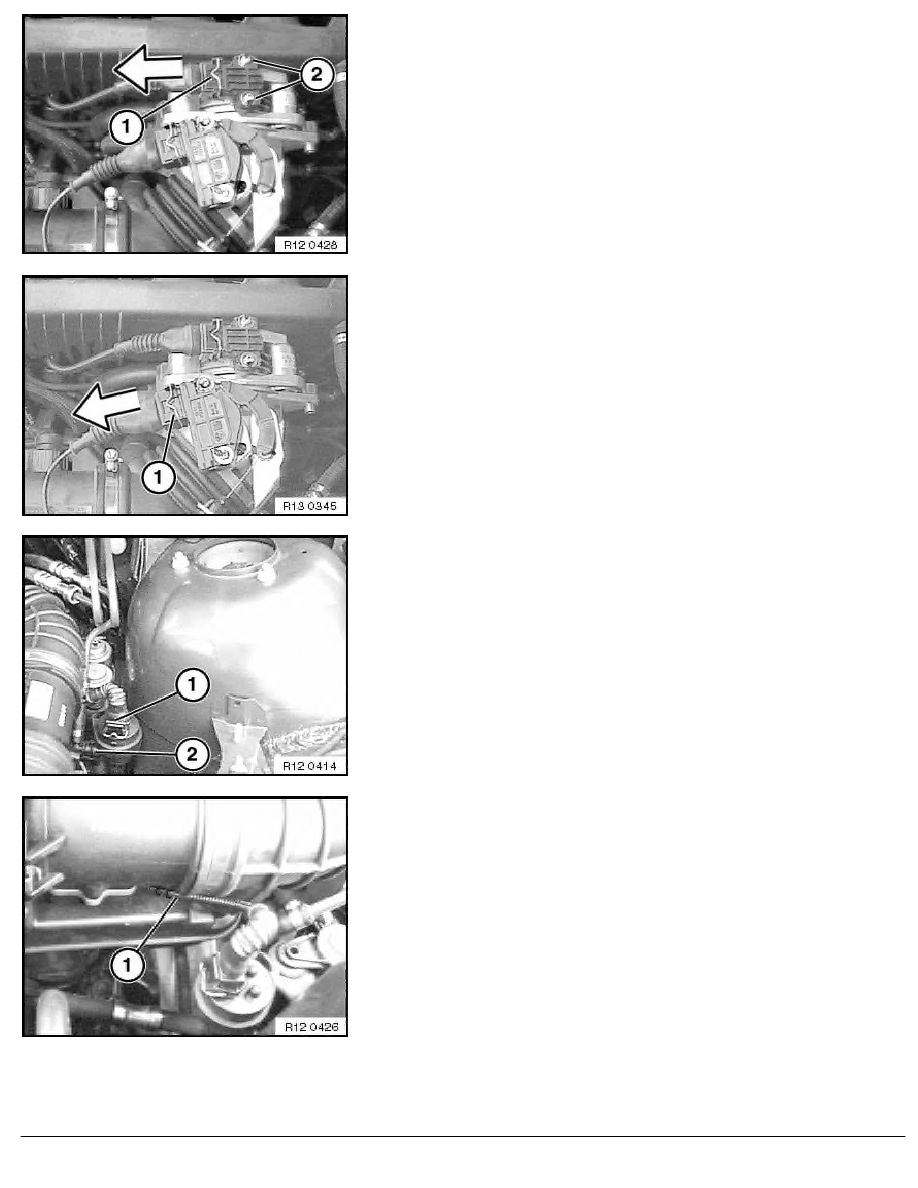

Disconnect plug connection (1) from throttle potentiometer.
Disconnect plug connection (1) from potentiometer for throttle on
ASC+T.
Remove complete throttle assembly,
refer to 13 54 030.
Disconnect plug connection (1) on tank venting valve.
Installation:
Note line routing (1) on tank vent valve.
RA Wiring harness - replacing engine section (M52)
