5 Series E39 520i (M52) TOUR
21 52 500
Removing and installing / replacing clutch
master cylinder
Note:
After completing work, bleed clutch hydraulics,
refer to 21 00 006.

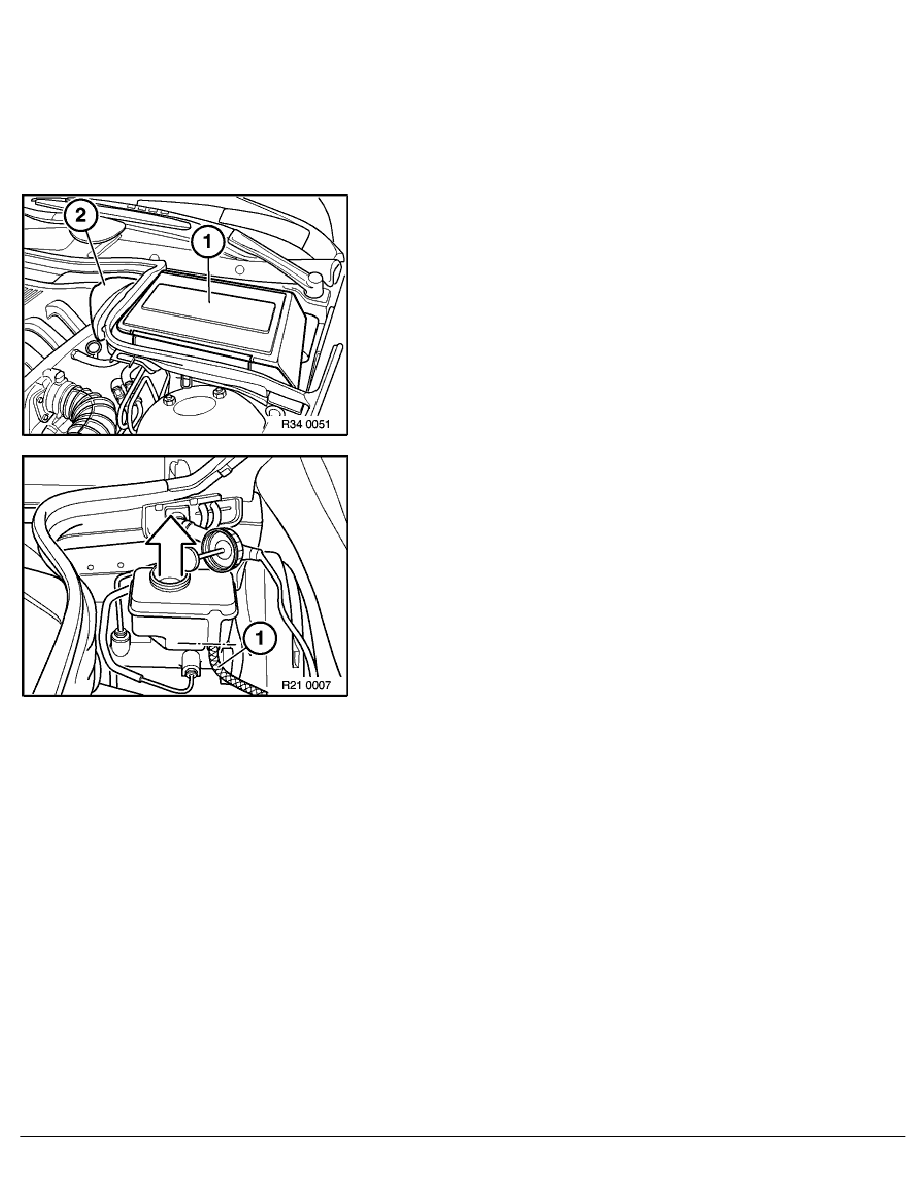

Remove microfilter housing (1).
Remove the brake fluid up to the supply hose of the clutch
hydraulics (1). For this purpose, use only a vacuum pipe that is
exclusively used for removing brake fluid.
Remove the supply hose (1) from the expansion tank.
Remove lower left trim panel from instrument panel.
RA Removing and installing / replacing clutch master cylinder
