5 Series E39 520i (M52) TOUR

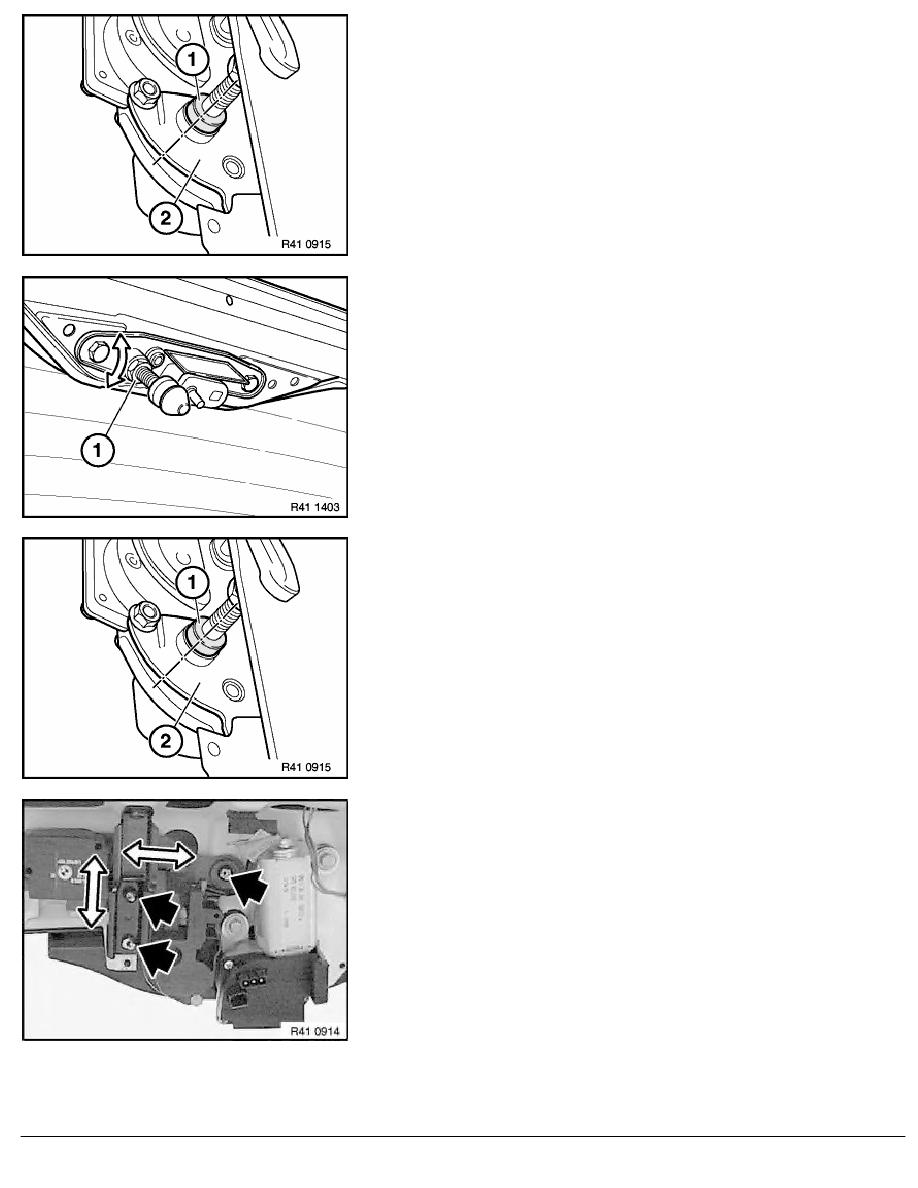

Open rear window frame.
When closing the rear window frame, ensure that the locking pin
(1) is centered in the middle of the lower section of the lock (2).
Close rear window frame.
To adjust inclination of locking pin, slacken nut (1) so that locking
pin can still be inclined.
When closing the rear window frame, ensure that the locking pin
(1) is centered in the middle of the lower section of the lock (2).
Close rear window frame.
Open trunk lid.
Tighten screws on lower section of lock back down.
RA Adjusting trunk lid to fit (touring)
