Removing and Replacing Outer Cover on Front Seat Back of BMW 5 Series E39 520i (M52) TOUR

Page 1
background image

52 13 040

Removing and installing / replacing outer
cover on left or right front seat back-rest
(normal / manual)

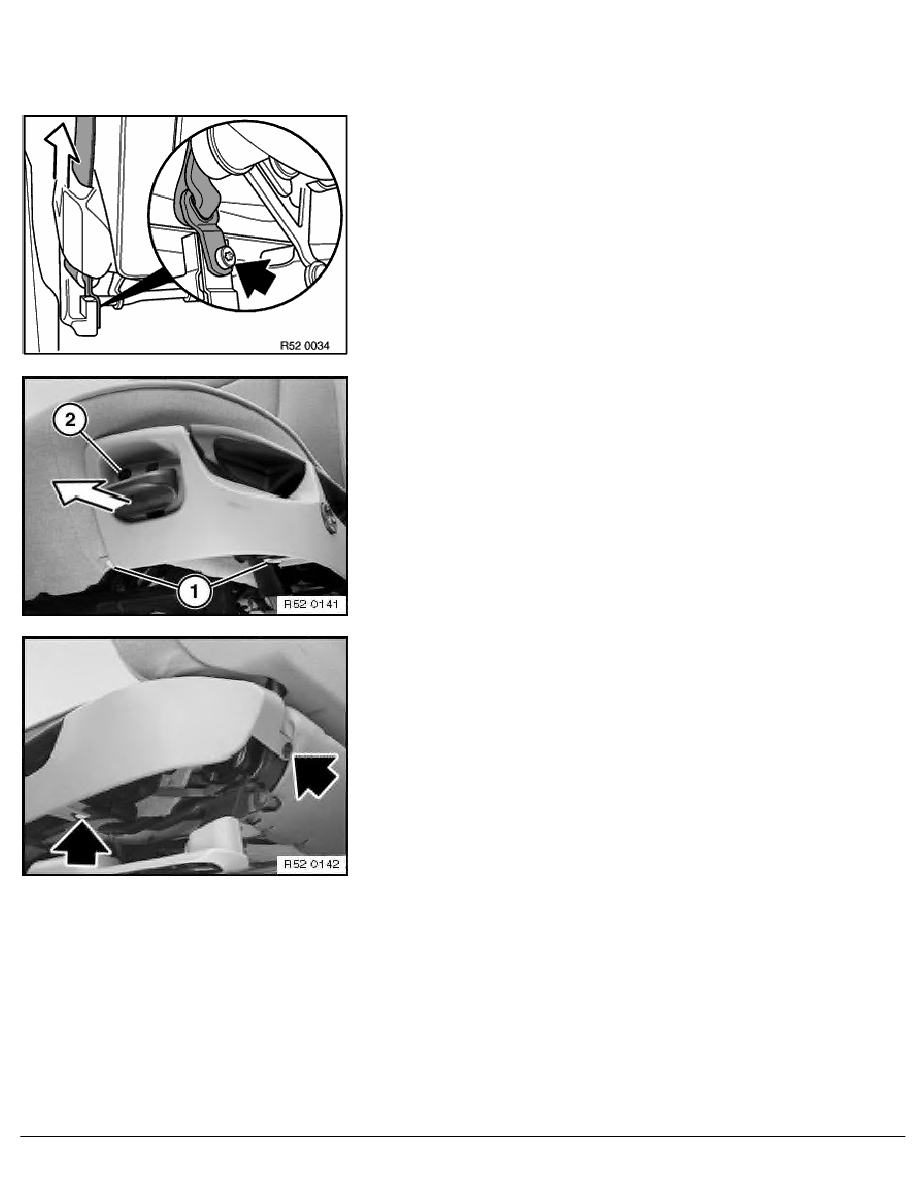

Unfasten seatbelt screw.

Tightening torque, refer to Technical Data 72 11 1AZ

Unfasten clips (1) (cut off or knock off clip head). Unscrew bolt (2).

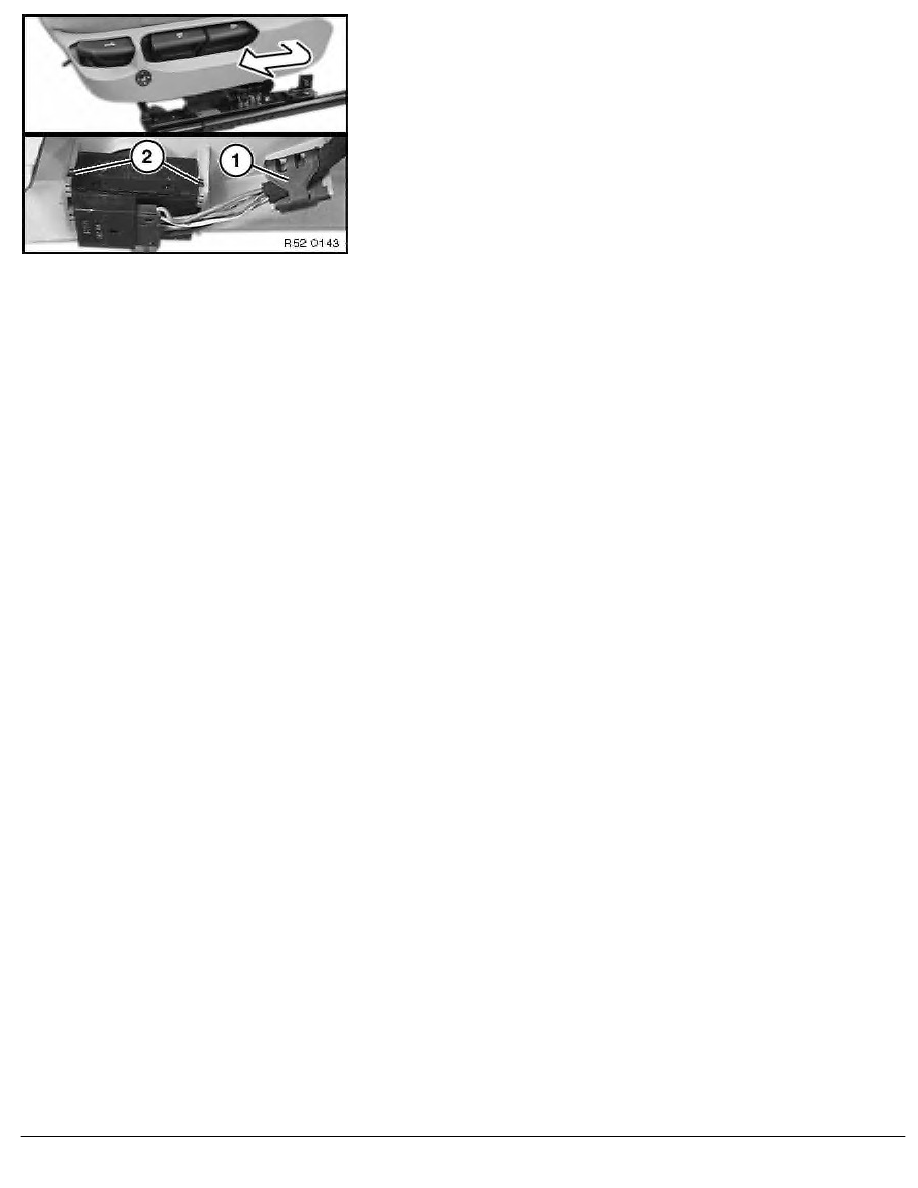

Pull the lever forward to remove.

Loosen rear clips.

RA  Removing and installing / replacing outer cover on left or right front seat back

BMW AG - TIS

03.02.2013  23:28

Issue status (12/2007) Valid only until next DVD is issued

Copyright

Page  - 1 -
