5 Series E39 520i (M52) TOUR
64 51 591
Removing and installing / replacing
evaporator
Heater / air conditioner removed,
refer to 64 11 205

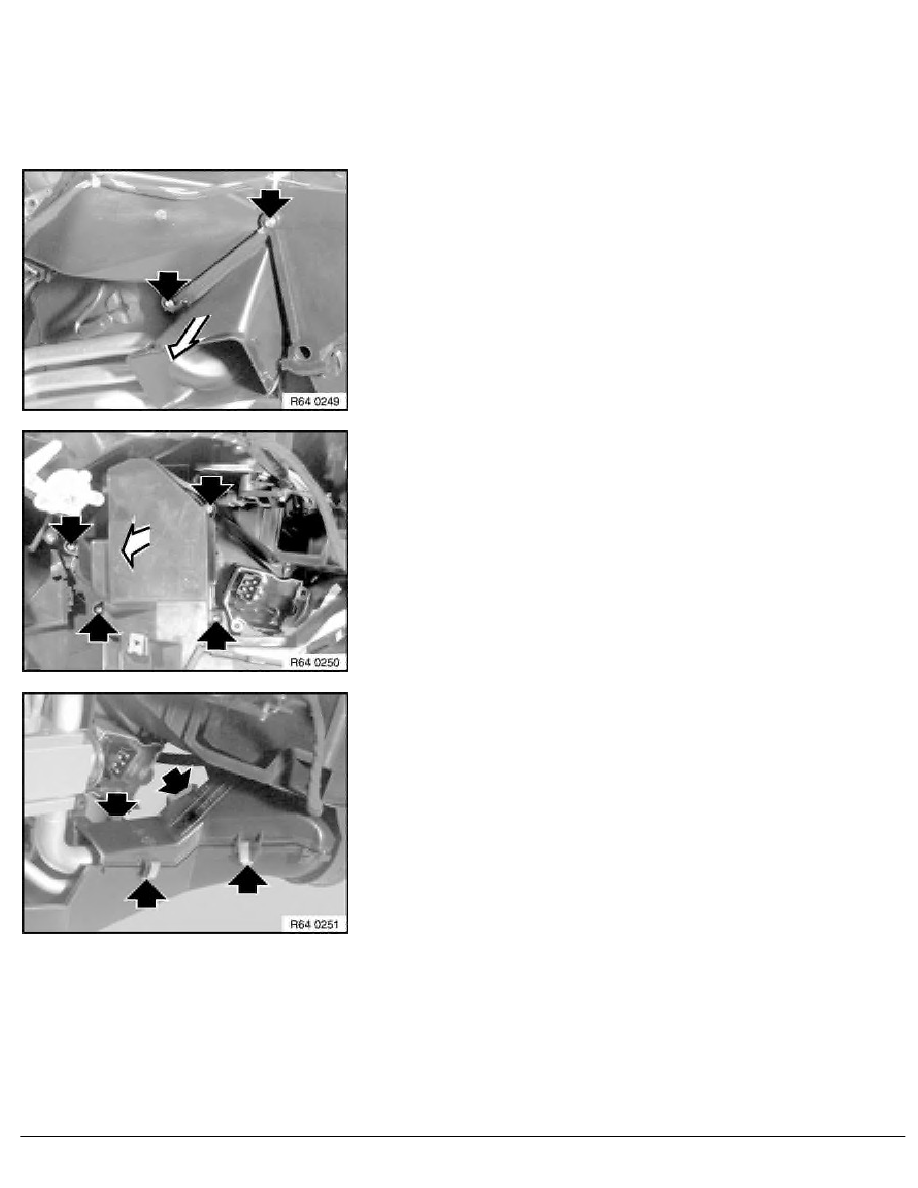

Unfasten screws and remove left and right footwell air outlets.
Unfasten screws and remove evaporator cover.
Unfasten clips and remove cover for evaporator tubes.
RA Removing and installing / replacing evaporator
