5 Series E39 525tds (M51) TOUR
Spare part already in expanded form
-
(6) Rear roof frame,
refer to 41 00 ... Installation of shaped parts for cavity bulkheads, except for cover for side member

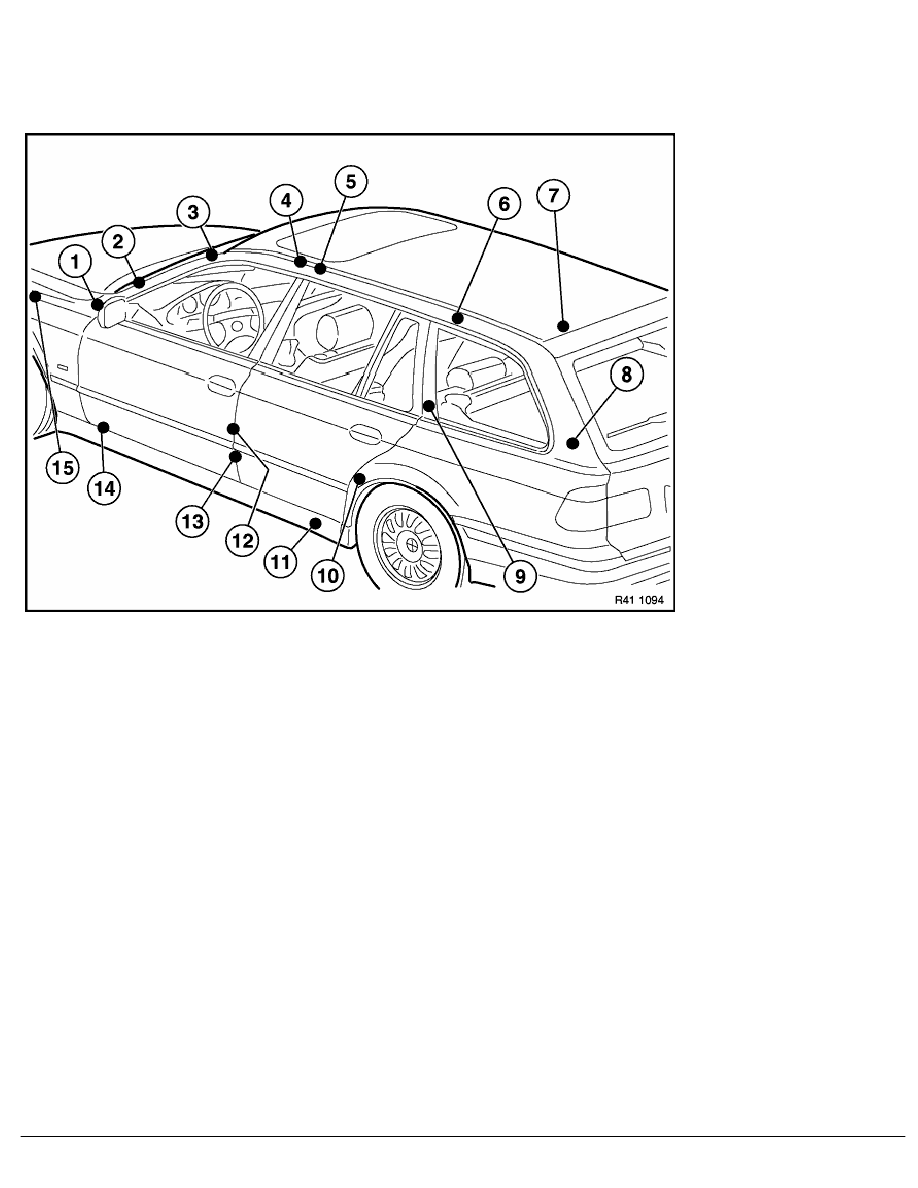

Location of shaped parts to cavity bulkhead E39 touring
Location of shaped parts is marked by points.
-
(7) Tope rear window frame,
Spare part already in expanded form
-
(8) D-pillar,
refer to 41 00 ... Installation of shaped parts for cavity bulkheads, except for cover for side member
-
(9) C-pillar,
2 parts, inner and outer bulkheads,
refer to 41 00 ... Installation of shaped parts for cavity bulkheads, except for cover for side member
-
(10) Rear wheel arch,
refer to 41 00 ... Installation of shaped parts for cavity bulkheads, except for cover for side member
-
(11) Cover for rear side member,
refer to 41 00 ... Installing cavity bulkhead cover for side member
-
(12) Top of B-pillar,
Spare part already in expanded form
-
(13) Bottom of B-pillar,
Spare part already in expanded form
RA Arranging shaped parts for cavity bulkhead
