5 Series E39 525tds (M51) TOUR
51 16 361
Replace right glovebox
Remove right glovebox,
refer to 51 16 360

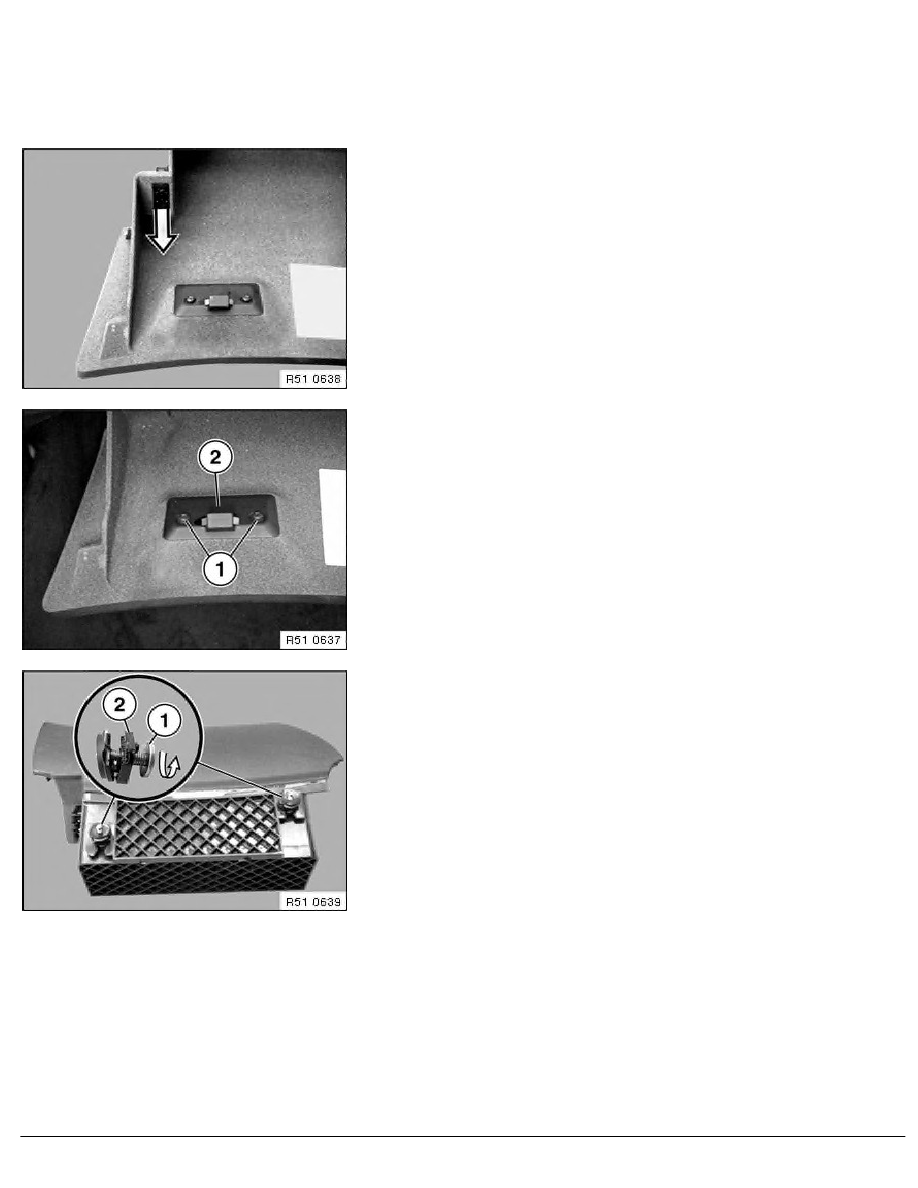

Unclip power connection for accumulator light.
Unscrew bolts (1). Remove upper and lower (2) sections of lock.
Installation:
By twisting the screw (1) the height of the clamp bearing (2)
and the glovebox is adjusted.
RA Replace right glovebox
