5 Series E39 530d (M57) SAL
11 66 000

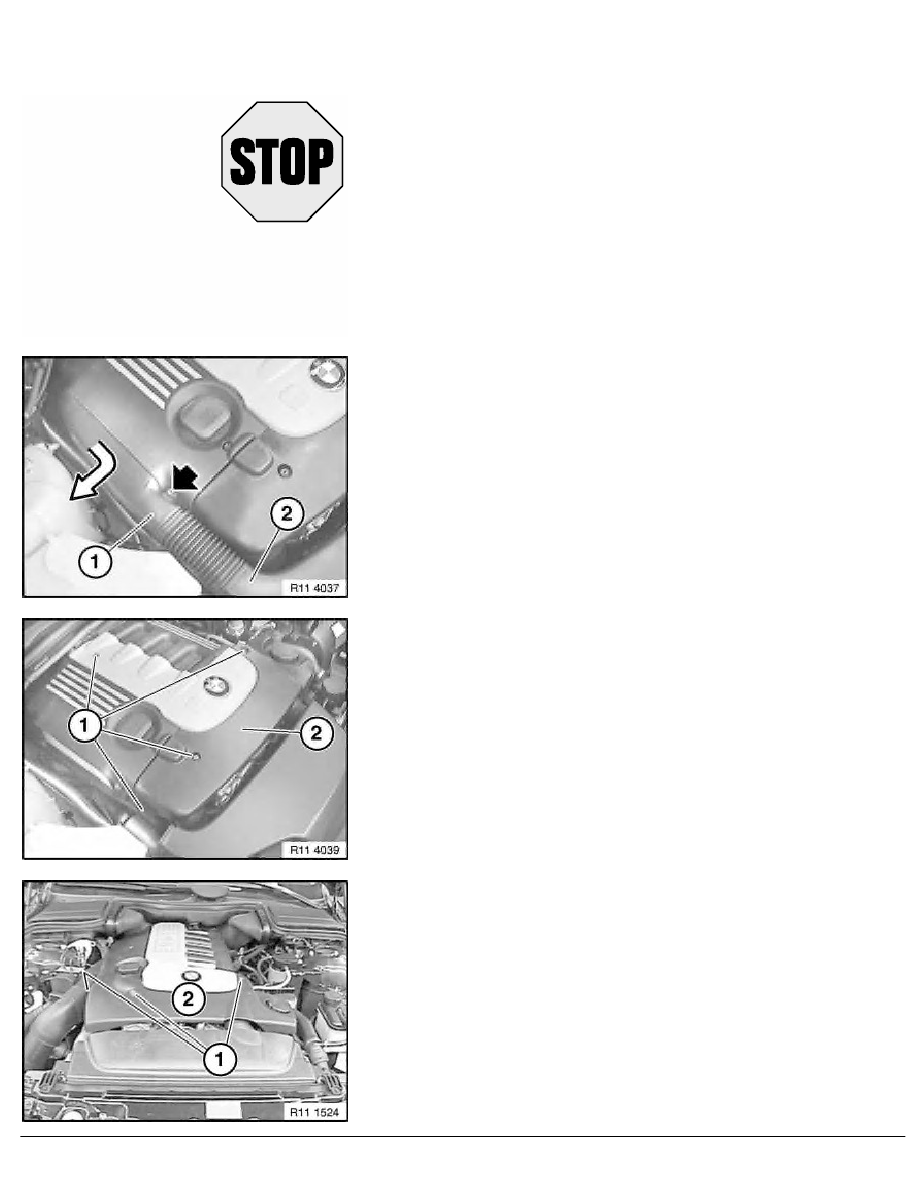

Removing and installing or replacing vacuum
pump (M57)
Warning!
Scalding hazard!
Only perform these tasks on an engine that has cooled down.
E46 only:
Release screws on air duct (1).
Remove air duct (1).
Release screws (1).
Remove acoustic cover (2).
E39/E38 only:
Release screws (1).
Remove acoustic cover at front (2).
