5 Series E39 M5 (S62) SAL
11 53 000
Removing and installing/replacing coolant
thermostat (S62)

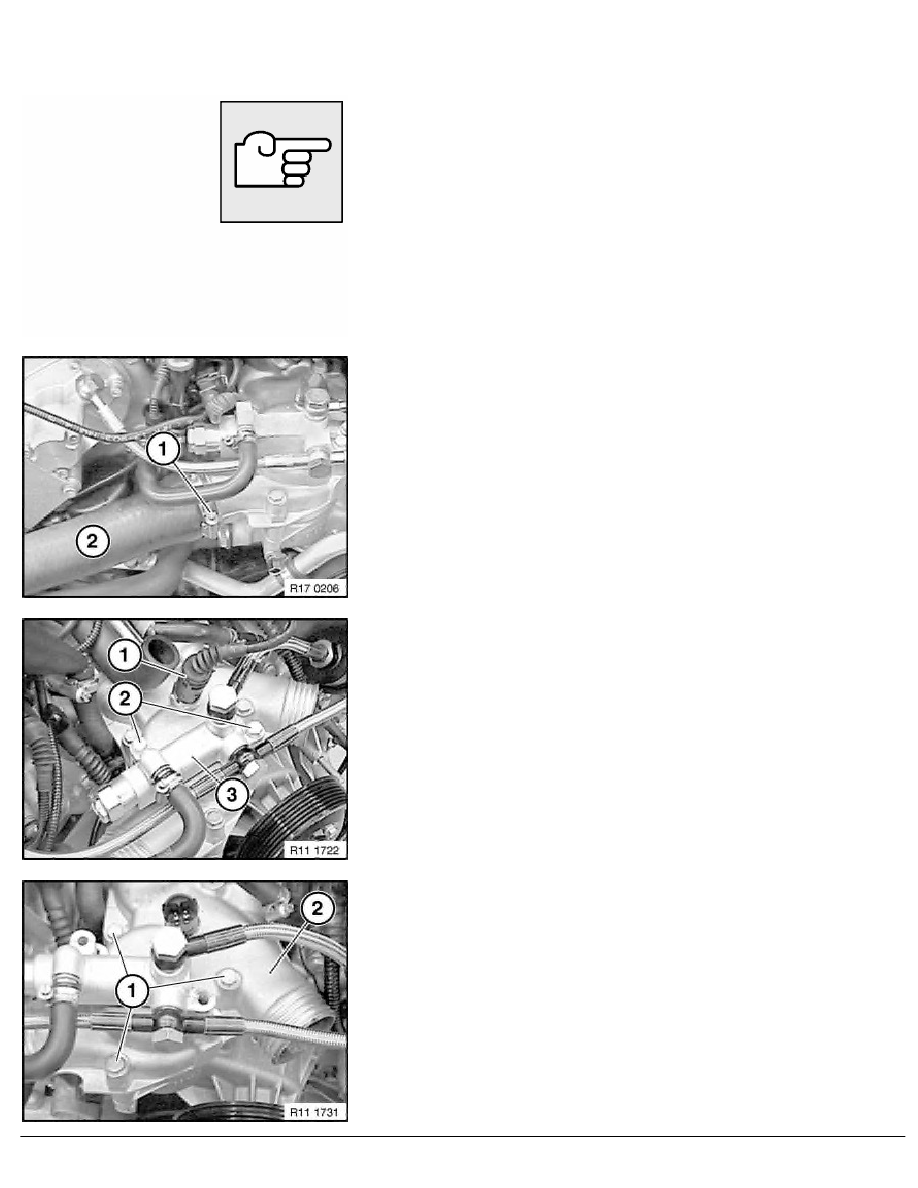

Drain off and dispose of coolant,
refer to 17 00 005.
Remove intake filter housing upper section with air-mass flow
sensor, left and right.
Release hose clamps (1) on left and right water hoses.
Detach left and right water hoses (2) from thermostat housing.
Disconnect plug connection (1) on coolant temperature sensor.
Release screws (2). Remove connecting piece (3).
Note:
VANOS oil lines remain connected.
Loosen screws (1).
Remove thermostat housing (2) with thermostat.
Withdraw thermostat from thermostat housing.
