5 Series E39 M5 (S62) SAL
84 11 510

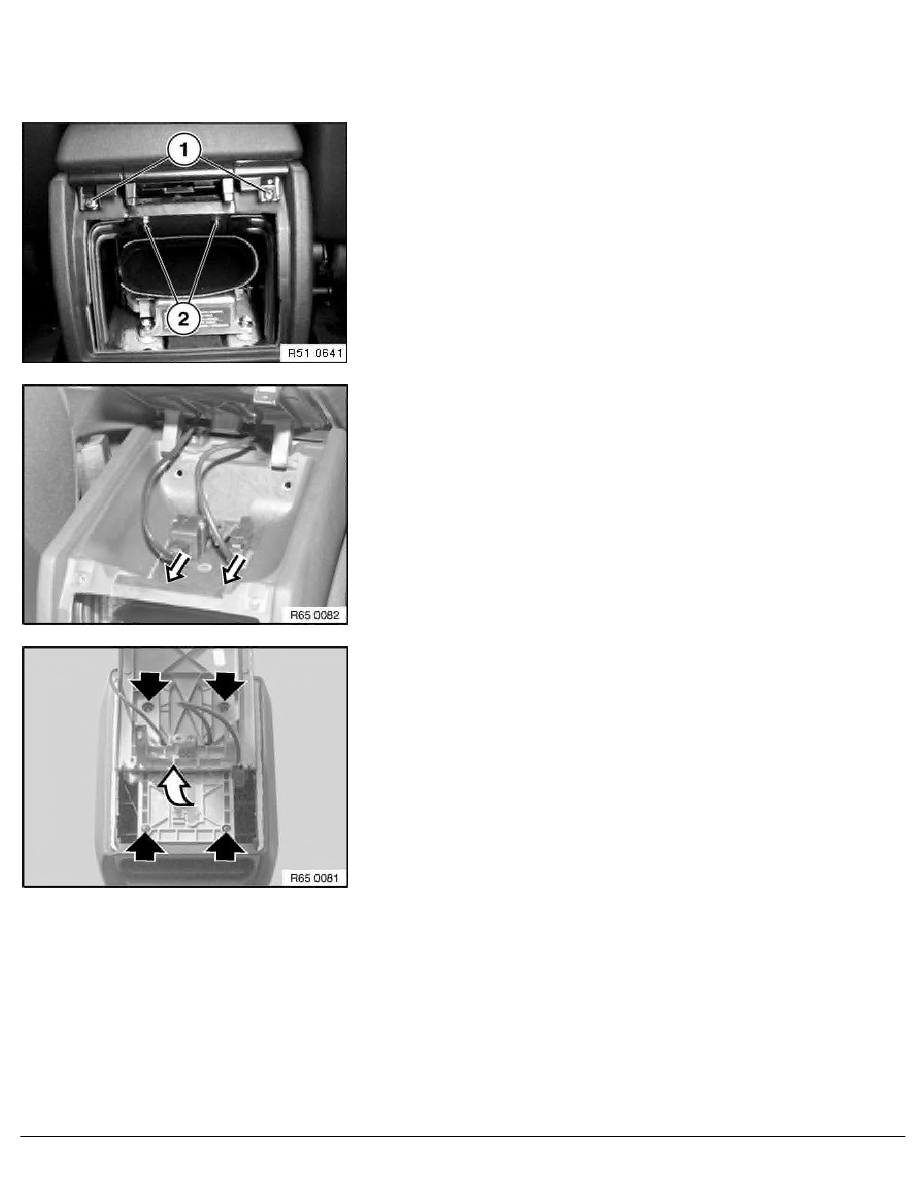

Removing and installing/replacing eject box
Remove fresh air grill in footwell.
Remove screws (1) and (2).
Raise center armrest.
Disconnect all plug connections and remove center armrest.
Pull sliding carriage apart fully and release screws.
RA Removing and installing/replacing eject box
