Car Access System
E60, E61, E63, E64, E70, E81, E87, E90, E91, E92, E93

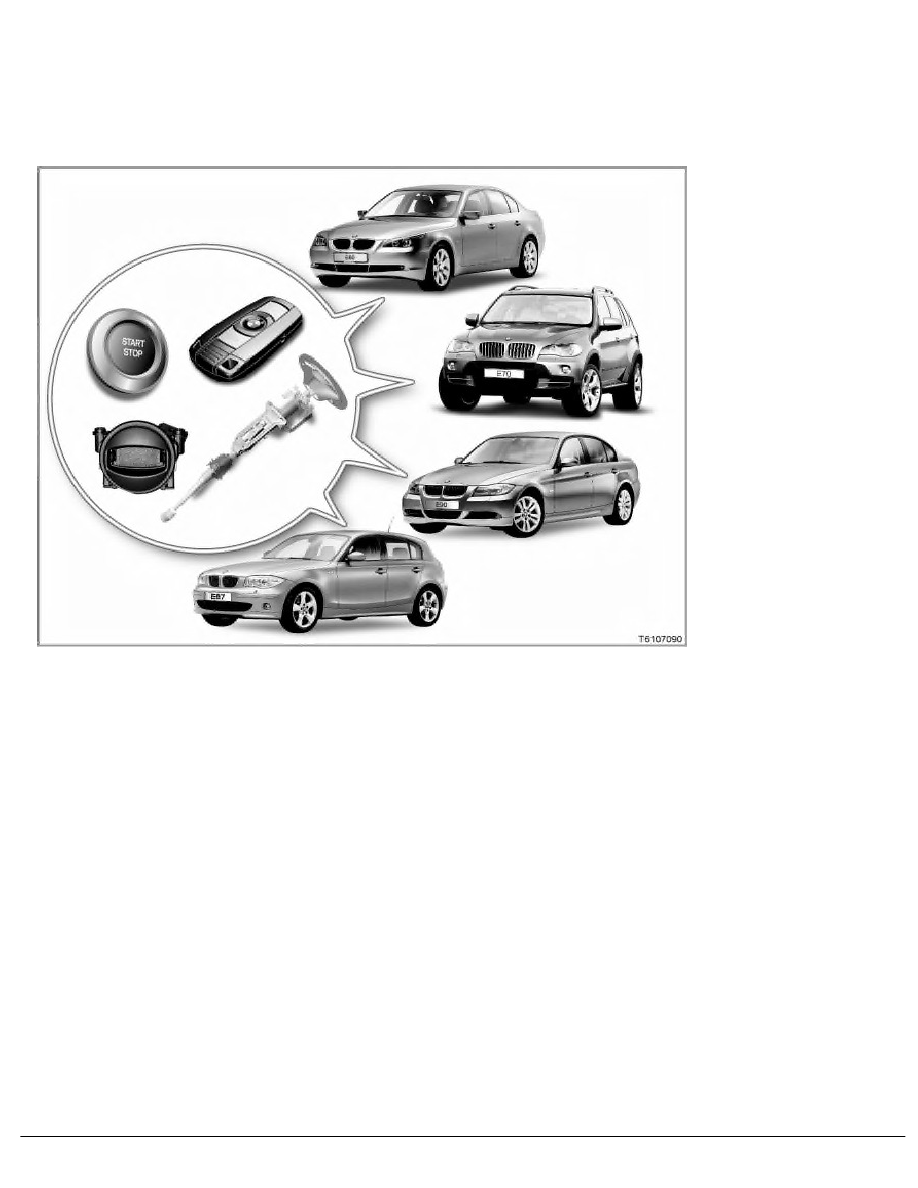

Introduction
The Car Access System (CAS) controls access to the vehicle.
The CAS control unit is the master control unit, e.g. for the following systems:
-
Electronic immobiliser
-
Central locking system
-
Comfort Access
-
Electronic steering lock
-
Power windows
The CAS is constructed differently in the various model series.
> E60, E61, E63, E64 until 09/2005:
The CAS and the ignition starter switch are 2 separate components.
> E60, E61, E63, E64 from 09/2005:
Ignition starter switch and conventional ignition key discontinued. The slot for the remote control and the
START/STOP button are new features.
> E70, E81, E87, E90, E91, E92, E93 from start of series production:
Slot and START/STOP button
>
E60, E61, E63, E64 until 09/2005: [System overview ...]
>
E60, E61, E63, E64 from 09/2005: [System overview ...]
