5 Series E60 525i (N52K) SAL
51 16 201
Replacing storage compartment
Necessary preliminary tasks:
•
Remove storage compartment
•
Remove controller

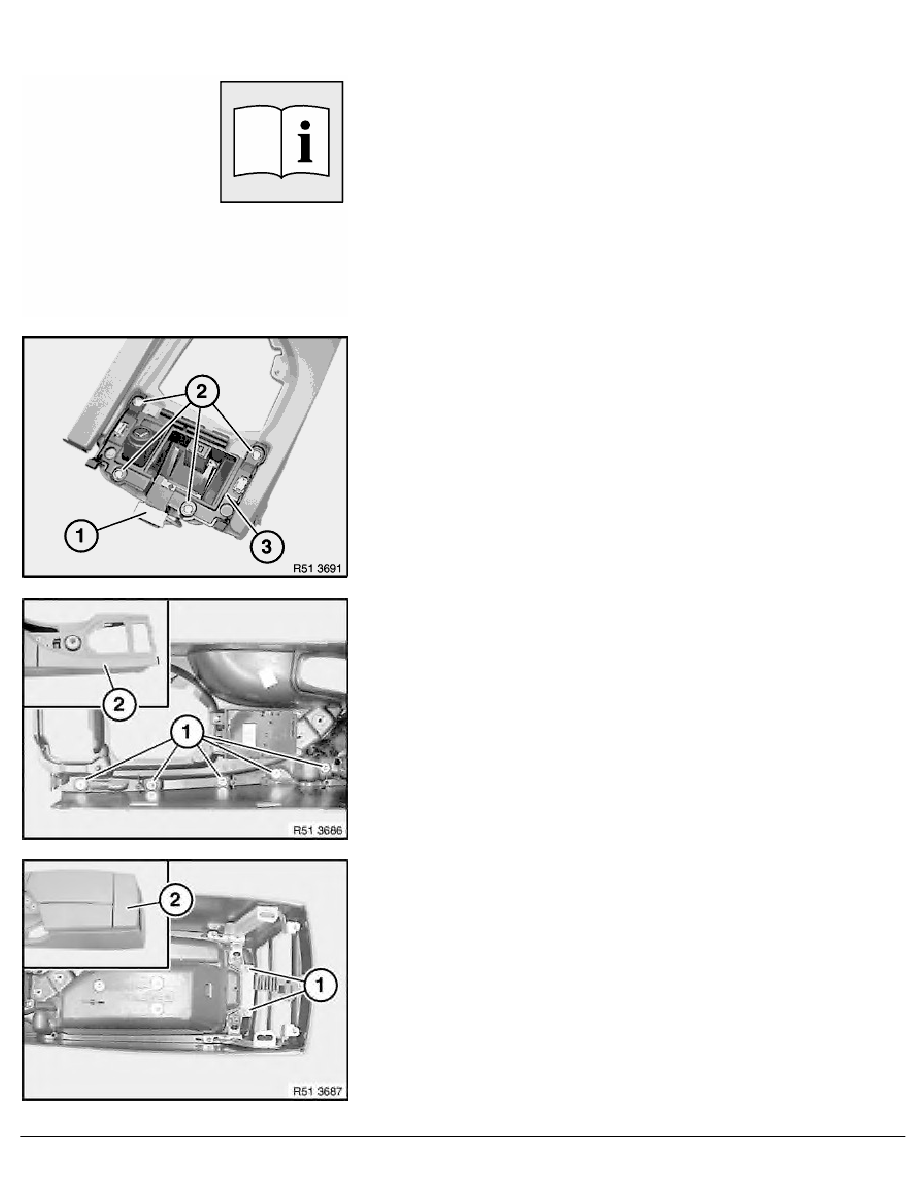

Disconnect plug (1).
Release screws (2) and lift out insert (3).
Release screws (1) on inside of storage compartment and
remove trim (2).
Release nuts (1) on inside of storage compartment and remove
trim (2).
RA Replacing storage compartment
